Electromagnetic Flow Meter

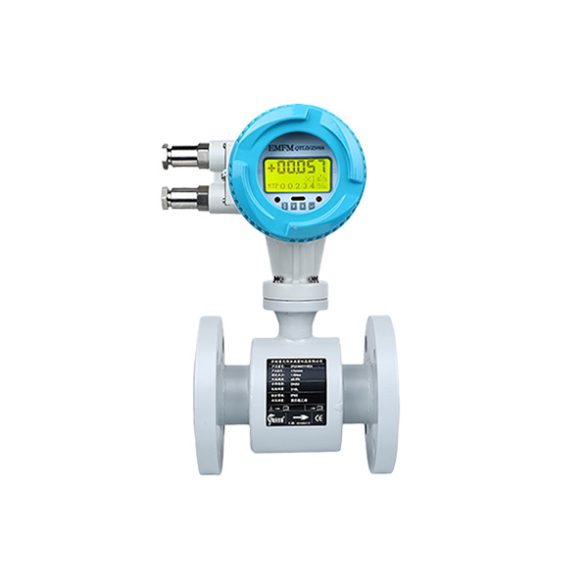

Flange Connection Magnetic Flow Meter
- Size: DN3-DN3000
- Pressure Rating:PN6/PN10/PN16/PN40
- Material:Stainless Steel 304/316,Carbon Steel
- Accuracy:±0.5% of reading,±0.3% and ±0.2% optional,velocity >0.3 m/s
- Medium temperature: -20℃~60℃
- Protection Grade:IP65 (Standard),IP68
- Electrode:SS316L, Hastelloy C, Hastelloy B, Titanium,Tantalum, Platinoiridium
Partial-Filled-Electromagnetic-Flow Meter
- Size: DN200-DN1000
- Connection: Flange
- Liner Material: Neoprene/Polyurethane
- Electrode Material: SS316, Ti, Ta, HB, HC
- Structure Type: Remote Type

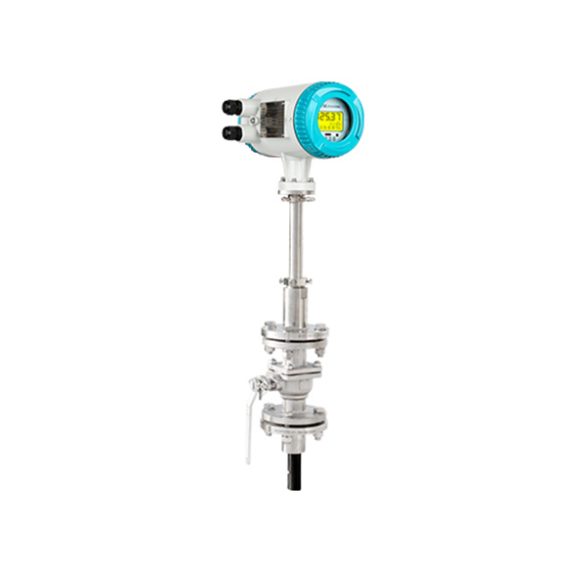

Insertion type electromagnetic flow meter
- Size: DN100-DN3000
- Nominal Pressure: PN16
- Accuracy: 1.5%
- Probe: ABS, Polyurethane
- Electrode: SUS316L, Hastelloy B, Hastelloy C
Sanitary electromagnetic flow meters
- Size: DN15-DN200
- Nominal Pressure: PN16
- Accuracy: ±0.5%(Standard)
- Liner: FEP, PFA
- Electrode: SUS316L, Hastelloy B, Hastelloy C
- Output Signal: 4-20mA pulse frequency relay
Wafer Connection Electromagnetic Flow Meter
- Size:DN25-DN200
- Nominal Pressure: PN16
- Accuracy: ±0.5%(Standard), ±0.3%(optional) ±0.2%(optional)
- Liner: PTFE, FEP, PFA
- Electrode:SS316L,HC,HB,Tan,Ti,Pt
- Output Mode:4~20 mA,pulse
- Protection Grade:IP65,IP68
- Medium Temperature:-10℃~160℃

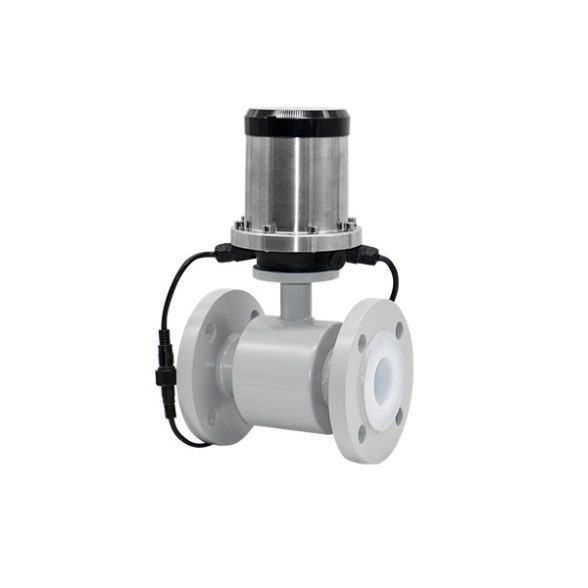

Battery Powered Electromagnetic Flow Meter
- Size:DN100-DN2000
- Nominal Pressure: PN16
- Electrode:SS316,HC,HB,Ti,Tan,Pt
- Liner Material:PTFE,PFA,FEP,neoprene,hard rubber
- Accuracy:0.5% of reading value, 0.3% and 0.2% optional
- Connection :Flange,Tri-clamp, Wafer, Union,
