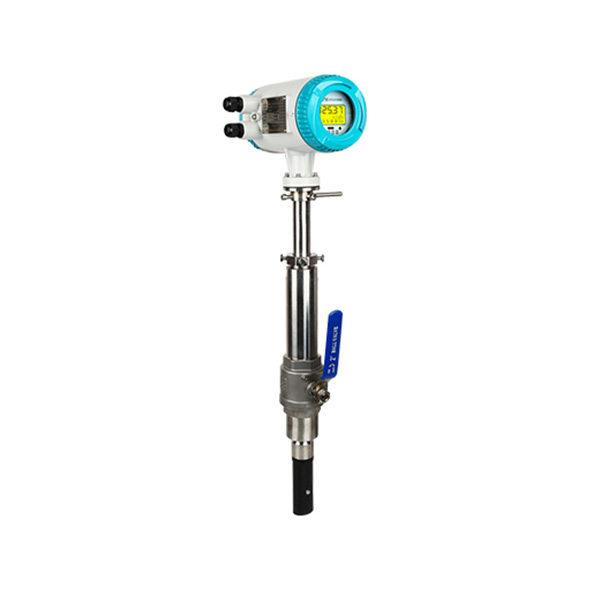

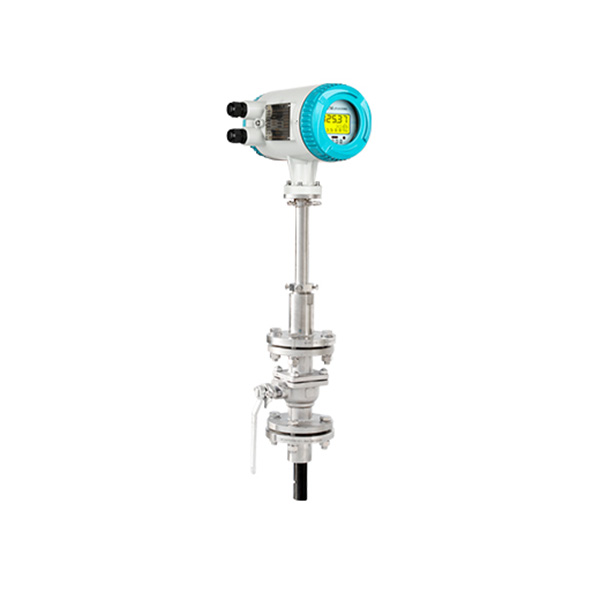

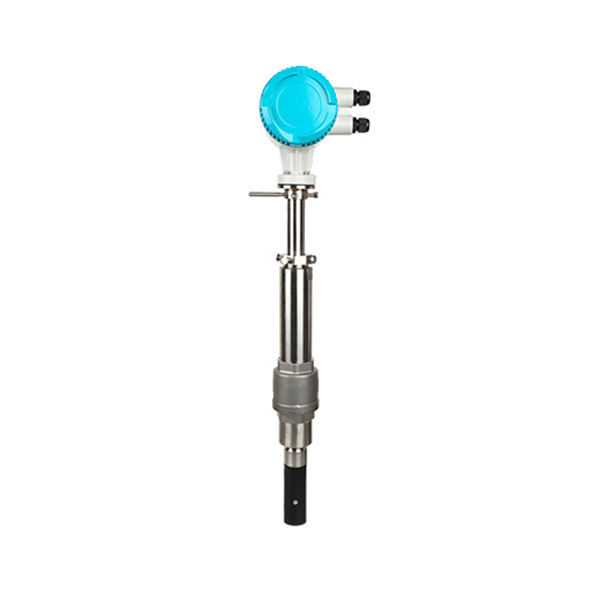

Insertion type electromagnetic flow meter is a type of electromagnetic flow meter has been used throughout industries for more than 50years.
Insertion type electromagnetic flow meter comprise an electromagnetic sensing probe in ABS or Polypropylene mounted on the end of a support rod.
One piece WESDUN insertion type electromagnetic flow meter can be used for pipe sizes between DN100mm and DN3000mm. It is an economic option for large pipeline applications. With hot-tap structure, it can achieve online installation easily.
Parameters
Size
Flow Range & Velocity Table
(mm)
0.1m/s
0.2m/s
0.5m/s
1m/s
4m/s
10m/s
12m/s
15m/s
100
2.83
5.65
14.13
28.26
113.04
282.6
339.1
423.9
125
4.42
8.83
22.08
44.16
176.63
441.56
529.9
662.34
150
6.36
12.72
31.79
63.59
254.34
635.85
763
953.78
200
11.3
22.61
56.52
113.04
452.16
1130.4
1356
1696
250
17.66
35.33
88.31
176.53
706.5
1766.25
2120
2649
300
25.43
50.87
127.2
254.34
1017
2543.4
3052
3815
350
34.62
69.24
173.1
346.19
1385
3461.85
4154
5193
400
45
90
226.1
452
1809
4522
5426
6782
450
57
114
286.1
572
2289
5723
6867
8584
500
71
141
353.3
707
2826
7065
8478
10598
600
102
203
508.7
1017
4069
10174
12208
15260
700
138
277
692.4
1385
5539
13847
16617
20771
800
181
362
904.3
1809
7235
18086
21704
27130
900
229
458
1145
2289
9156
22891
27469
34336
1000
283
565
1413
2826
11304
28260
33912
42390
1200
407
814
2035
4069
16278
40694
48833
61042
1400
554
1108
2769
5539
22156
55390
66468
83084
1600
723
1447
3617
7235
28938
72346
86815
108518
1800
916
1831
4578
9156
36625
91562
109875
137344
2000
1130
2261
5652
11304
45216
113040
135648
169560
2200
1368
2736
6839
13678
54711
136778
164134
205168
2400
1628
3256
8139
16278
65111
162778
195333
244166
2600
1910
3821
9552
19104
76415
191038
229245
286556
2800
2216
4431
11078
22156
88623
221558
265870
332338
3000
2543
5087
12717
25434
101736
254340
305208
381510
Main Performances Parameters
Size
DN100mm-DN3000mm
Nominal Pressure
1.6Mpa
Accuracy
1.50%
Probe
ABS, Polyurethane
Electrode
SUS316L,Hastelloy B,Hastelloy C
Structure Type
Integral type, remote type
Medium Temperature
-20~+80degC
Ambient Temperature
-20~+60degC
Ambient Humidity
5~100%RH(Relative humidity)
Measuring Range
Max 15m/s
Conductivity
> 5us/cm
Protection Class
lP65(Standard); IP68(Optional for remote type)
Process Connection
2″Thread(Standard),2″Flange(Optional)
Output Signal
4-20mA/Pulse
Communication
RS485(Standard),HART(Optional),GPRS/GSM(Optional)
Power Supply
AC220V(Can be used for AC85-250V) DC24V(Can be used for DC20-36V) DC12V(Optional), Battery powered 3.6V(Optional)
Power Consumption
<20W
Alarm
Upper Limit Alarm / Lower Limit Alarm
Self-diagnosis
Empty Pipe Alarm, Exciting Alarm
Explosion Proof
ATEX
Main Performances Of The Electrode Materials
Electrode material
Applications
SUS316L
Applicable in water, sewage and low corrosive mediums.Widely used in industries of petrol, chemistry, carbamide,etc
Hastelloy B
Having strong resistance to hydrochloric acid of any consistance whichis below bioling piont.Resistable against vitriol, phosphate, hydrofluoricacid, organic acid etc which are oxidable acid,alkali and non-oxidable salt.
Has telloy C
Be resistant to oxidable acid such as nitric acid, mixed acid as well as oxidable salt such asFe+++,Cu++and sea water.
Features
Medium temperature can be -20℃~80℃.
Integrated vertification,diagnostic function and empty pipe detection.
Measure forward and reverse direction flows.
Easy to install and it can be installed without shutting down the process.
Dual frequency excitation and stable zero point.
Precision coil winding technology,makes magnetic field more uniform.
