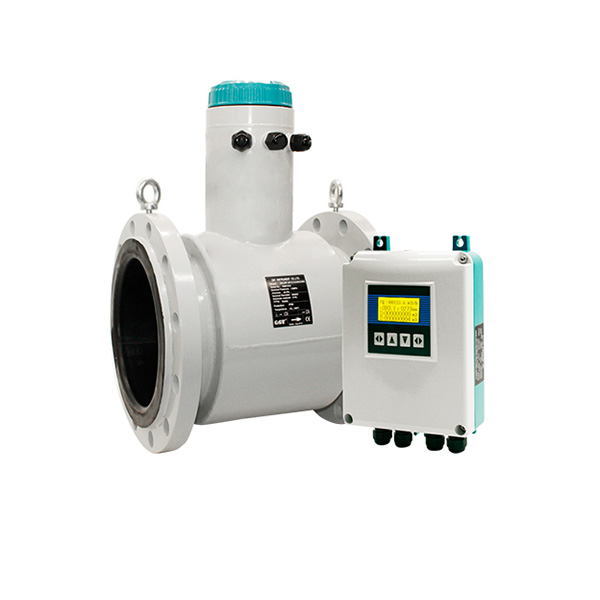

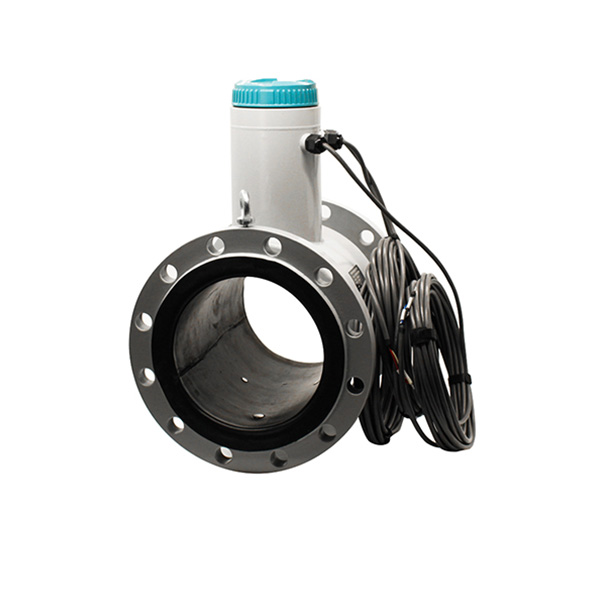

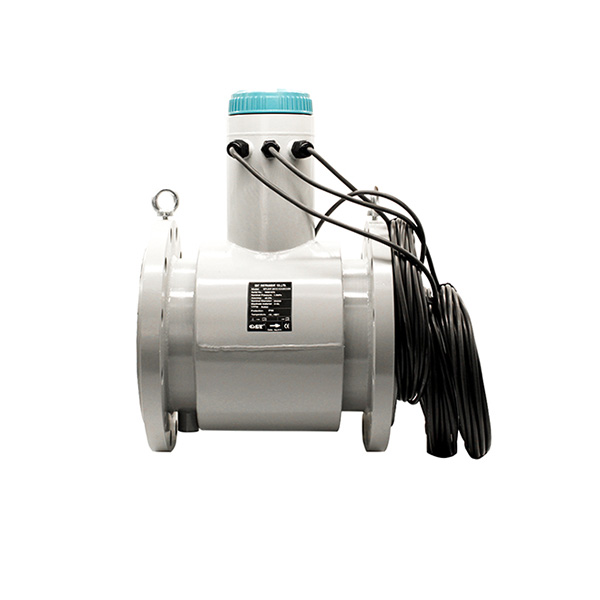

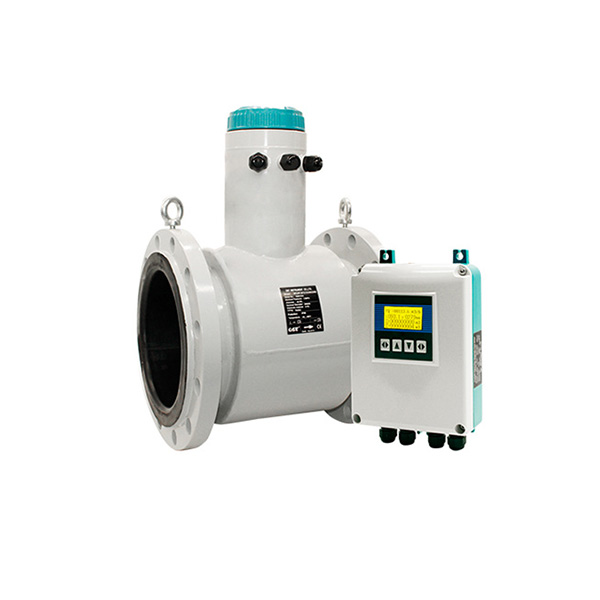

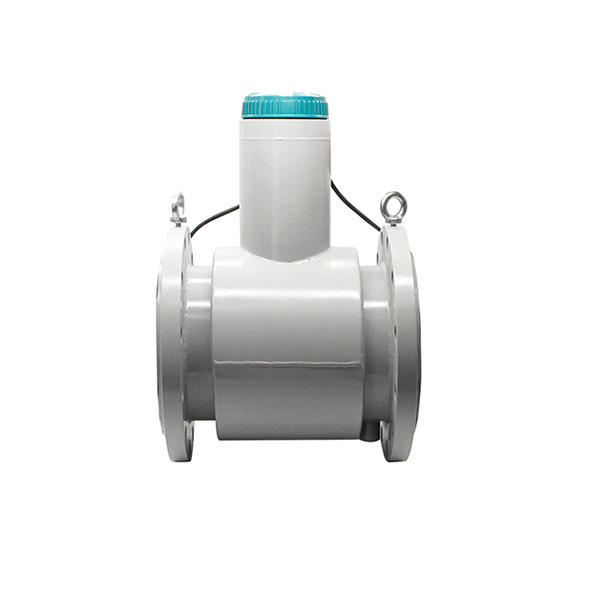

Introductions
WESDUN is a manufacturer specializing in the production of Partially filled pipe flow meter;DN200 flow meter;Solar power.Partially filled pipe electromagnetic flow meter is a kind of volume flow meter. It was specially designed for partially filled pipe.
It can measure liquid volume from 10% level of the pipe to 100% level of the pipe. It’s accuracy can reach to 2.5%, very accurate for irrigation and waste water liquid measurement.
It use remote LCD display so users can read the flow measurement easily. We also provide solar power supply solution for some remote areas where has no power supply.
Parameters

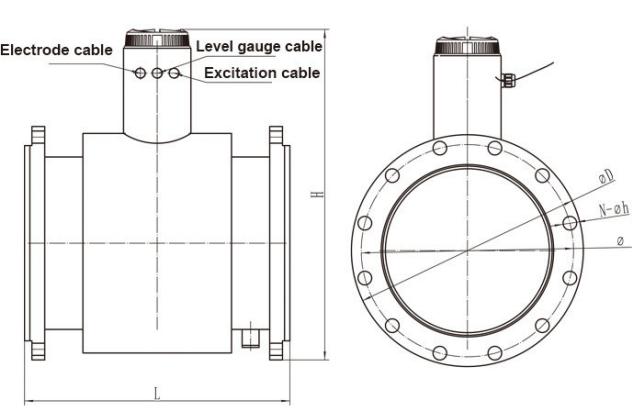

| Partial-filled pipe electromagnetic flow meter drawing(DIN flange) | ||||||
| Diameter (mm) | Nominal pressure | L(mm) | H | ØA | ØK | N-Øh |
| DN200 | 0.6 | 400 | 494 | 320 | 280 | 8-Ø18 |
| DN250 | 0.6 | 450 | 561 | 375 | 335 | 12-Ø18 |
| DN300 | 0.6 | 500 | 623 | 440 | 395 | 12-Ø22 |
| DN350 | 0.6 | 550 | 671 | 490 | 445 | 12-Ø22 |
| DN400 | 0.6 | 600 | 708 | 540 | 495 | 16-Ø22 |
| DN450 | 0.6 | 600 | 778 | 595 | 550 | 16-Ø22 |
| DN500 | 0.6 | 600 | 828 | 645 | 600 | 20-Ø22 |
| DN600 | 0.6 | 600 | 934 | 755 | 705 | 20-Ø26 |
| DN700 | 0.6 | 700 | 1041 | 860 | 810 | 24-Ø26 |
| DN800 | 0.6 | 800 | 1149 | 975 | 920 | 24-Ø30 |
| DN900 | 0.6 | 900 | 1249 | 1075 | 1020 | 24-Ø30 |
| DN1000 | 0.6 | 1000 | 1359 | 1175 | 1120 | 28-Ø30 |
| Measuring Pipe Size | DN200-DN3000 |
| Connection | Flange |
| Liner Material | Neoprene/Polyurethane |
| Electrode Material | SS316,TI,TA,HB,HC |
| Structure Type | Remote Type |
| Accuracy | 2.50% |
| Output Signal | Modbus RTU, TTL electrical level |
| Communication | RS232/RS485 |
| Flow speed range | 0.05-10m/s |
| Protection Class | Converter: IP65 Flow Sensor:IP65 (standard) IP68(optional) |
Features
- Partially filled pipe electromagnetic flow meter can measure partially filled pipe liquid flow, it is very popular in irrigation.
- Its can use solar power supply, this type is very suitable for remote areas where has no industrial power supply.
- It adopts safe and durable material, service life is longer than normal products. Normally, it can work at least 5-10 years or longer.
- We have already got food grade certificate for its liner so it can be used for drinking water, underground water, etc. Many drinking water company use this type in their big size pipeline.
- We use an accurate mini ultrasonic level meter for its liquid level measurement then the flow meter will record the liquid level and use this parameter to measure liquid flow.
- This ultrasonic level meter’s blind area is very small and its accuracy can reach to ±1mm.
Selections
| WESDUN | XXX | X | X | X | X | X | X | X | X | X | ||
| Diameter(mm) | DN200-DN1000 three digit number | |||||||||||
| Nominal pressure | 0.6Mpa | A | ||||||||||
| 1.0Mpa | B | |||||||||||
| 1.6Mpa | C | |||||||||||
| The connection method | The flange type | 1 | ||||||||||
| Liner | neoprene | A | ||||||||||
| Electrode materials | 316L | A | ||||||||||
| Hastelloy B | B | |||||||||||
| Hastelloy C | C | |||||||||||
| titanium | D | |||||||||||
| tantalum | E | |||||||||||
| Stainless steel coated with tungsten carbide | F | |||||||||||
| Structure form | Remote Type | 1 | ||||||||||
| Remote Type Diving type | 2 | |||||||||||
| The power supply | 220VAC 50Hz | E | ||||||||||
| 24VDC | G | |||||||||||
| 12V | F | |||||||||||
| Output/communication | Volume flow 4~20mADC/ pulse | A | ||||||||||
| Volume flow 4~20mADC/RS232C serial communication interface | B | |||||||||||
| Volume flow 4~20mADC/RS485C serial communication interface | C | |||||||||||
| Volume flow HART protocol output | D | |||||||||||
| Converter form | square | A | ||||||||||
| Special tag | ||||||||||||
| Diameter(mm) | Model number |
| 200 | 201 |
| 250 | 251 |
| 300 | 301 |
| 350 | 351 |
| 400 | 401 |
| 450 | 451 |
| 500 | 501 |
| 600 | 601 |
| 700 | 701 |
| 800 | 801 |
| 900 | 901 |
| 1000 | 102 |
| X | |
| 1 | The grounding electrode |
| 2 | Companion flange |
| 3 | Inlet protection flange |
Installation Notice
Installed at the lowest point and vertical upward direction
Don’t install at the highest point and vertical downward direction
Install exhaust valve at the downstreat of flow meter when drop is more than 5m
Installed at the lowest point when used in open drain pipe
Dont’ install it at the entrance of pump, install it at the exit of pump Installed at the rising direction
