Introductions
WESDUN Instrument Turbine Flow Meter offers two accuracy classes, 0.5%R and 0.2%R. Its simple structure allows a small pressure loss and virtually no maintenance requirements.

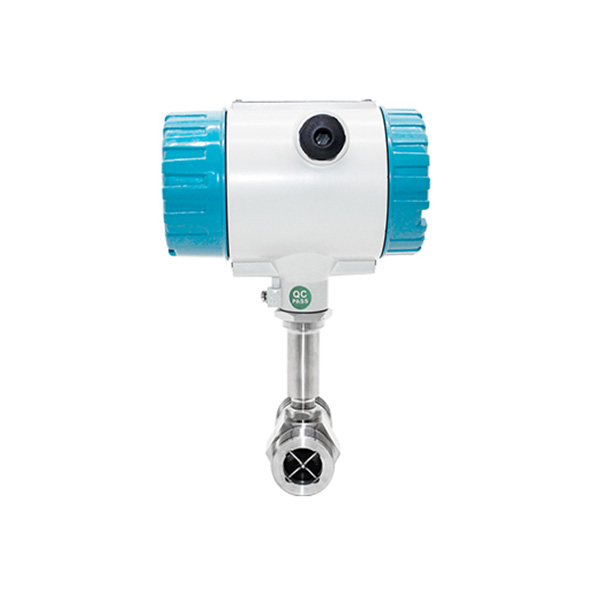

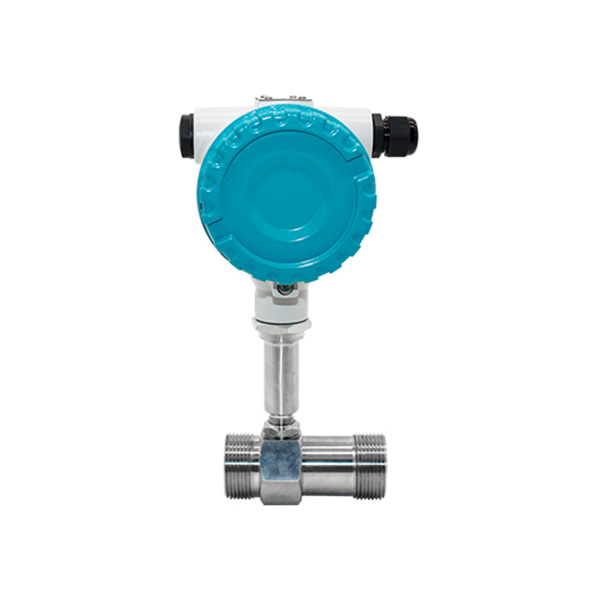

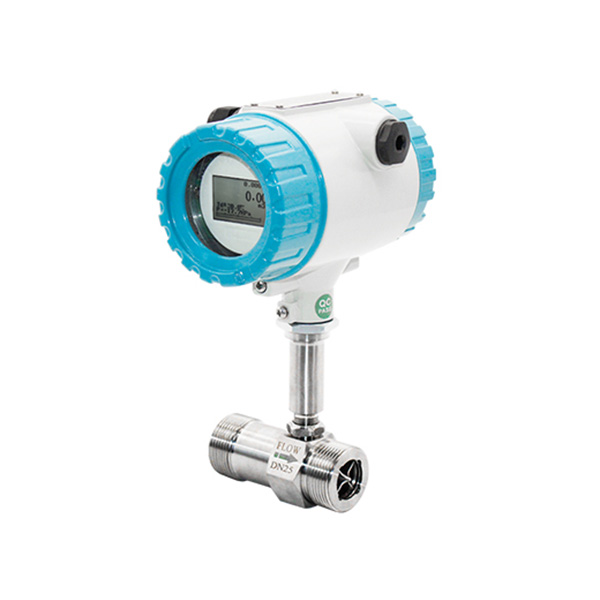

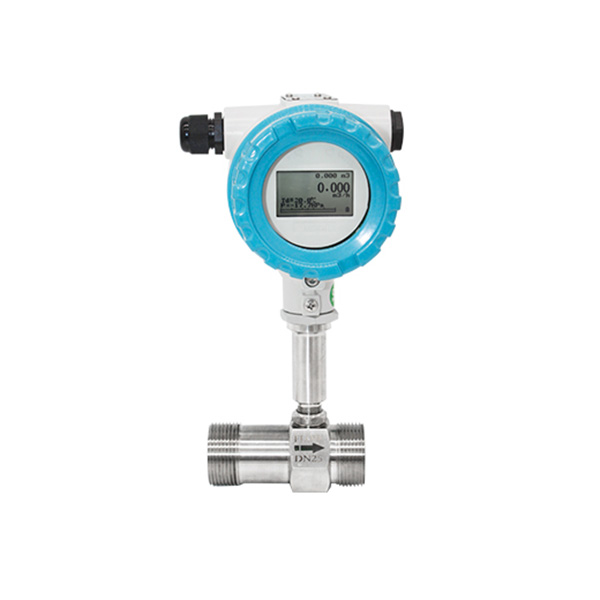

The Thread Connection Turbine Flow Meter offers two types of converter options, Compact Type (Direct Mount) and Remote Type.
Our users can select the preferred converter type depending on the commissioning environment.
WESDUN Thread Connection Turbine flow meter is the most popular turbine product used in systems with small pipe sizes.
Main technical Parameters
| Size | DN4,6,10,15,20,32,40,50,65,80 |

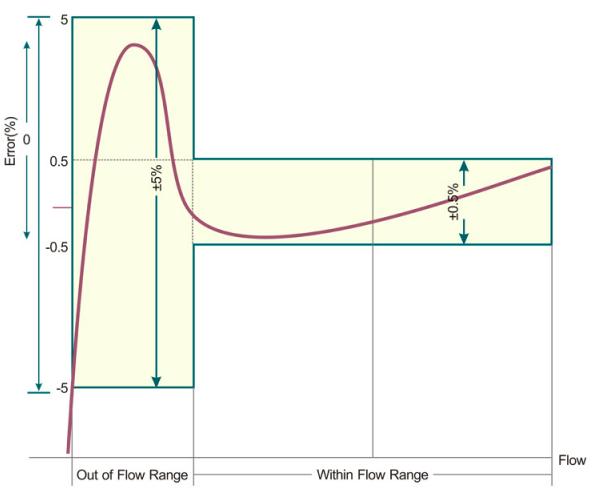

| Accuracy | ±0.5% (±0.2% Optional) |
| Sensor Material | SS304 (SS316L Optional) |
| Ambient Conditions | Medium temperature:-20℃~+150℃; Atmospheric pressure:86Kpa~106Kpa Ambient temperature:-20℃~+60℃; Relative humidity:5%~90% |
| Signal Output | Pulse, 4-20mA |
| Digital Communication | RS485, HART |
| Power Supply | 24V DC/3.6V Lithium Battery |
| Cable Entry | M20*1.5;1/2″NPT |
| Explosion-proof class | Ex d IIC T6 Gb |
| Protection class | IP65 |
| Diameter(mm) | Standard Range(m3/h) | Extended Range(m3/h) | Standard Pressure(Mpa) | Customized Pressure Rating(Mpa) |
| DN4 | 0.04~0.25 | 0.04~0.4 | 1.6 | 4 |
| DN6 | 0.1~0.6 | 0.06~0.6 | 1.6 | 6.3 |
| DN10 | 0.2~1.2 | 0.15~1.5 | 1.6 | |
| DN15 | 0.6~6 | 0.4~8 | 1.6 | 10 |
| DN20 | 0.8~8 | 0.45~9 | 1.6 | |
| DN25 | 1~10 | 0.5~10 | 1.6 | 16 |
| DN32 | 1.5~15 | 0.8~15 | 1.6 | |
| DN40 | 2~20 | 1~20 | 1.6 | 25 |
| DN50 | 4~40 | 2~40 | 1.6 | 42 |
| DN65 | 7~70 | 4~70 | 1.6 | |
| DN80 | 10~100 | 5~100 | 1.6 |
Features
- high-quality products with economical cost.
- applies to viscous fluids, non-conductive fluids, solvents, liquefied gases and high-pressure applications.
- high accuracy of 0.2% R and a wide range of applications to non-conductive liquids, such as fuel oil, ultra pure water and gasoline.
- wide turn down ratio of 20:1, combined with its mechanical designs enables the meter to operate reliably in both high and low flow rates and produce excellent repeatability as low as 0.05%.
- The Thread connection Turbine Flow Meter is known for its application to smaller pipe sizes. In the case of limited installation space, Thread connection Turbine Flow Meter is always preferred over Flanged connection and Tri-Clamp connection Turbine Meters.
Selection
| Model Suffix Code | Description | |||||||||
| WESDUN | ||||||||||
| Diameter | Three Digitals; for example: 010:10 mm;015:15 mm;080:80 mm; | |||||||||
| Converter | N | No display;24V DC;Pulse Output | ||||||||
| A | No display;24V DC;4-20mA Output | |||||||||
| B | Local display;Lithium Battery Power;Nooutput | |||||||||
| C | Local display; 24V DC Power; 4-20mAOutput; | |||||||||
| C1 | Local display; 24V DC Power;4-20mAOutput; Modbus RS485 Communication | |||||||||
| C2 | Local display;24V DC Power;4-20mA;Output;HART Communication | |||||||||
| Accuracy | 5 | 0.5% of Rate | ||||||||
| 2 | 0.2% of Rate | |||||||||
| Flow Range | S | Standard Range: refer to flow range table | ||||||||
| W | Wide Range: refer to flow range table | |||||||||
| Body Material | S | SS304 | ||||||||
| L | SS316 | |||||||||
| Explosion Rating | N | Safety Field without Explosion | ||||||||
| E | Exd IIC T6 Gb | |||||||||
| Fluid Temperature | T1 | -20…+80°C | ||||||||
| T2 | -20…+120°C | |||||||||
| T3 | -20…+150°C | |||||||||

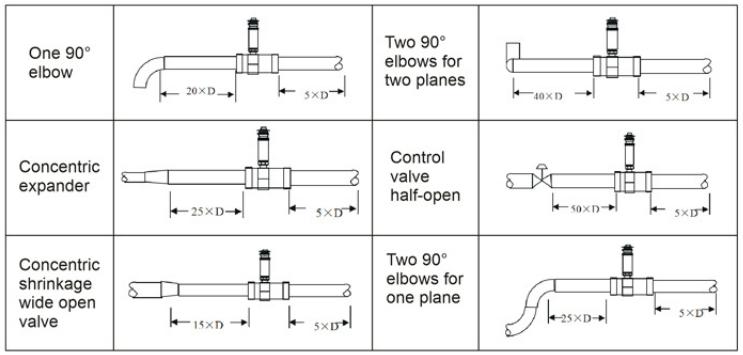

Installation
