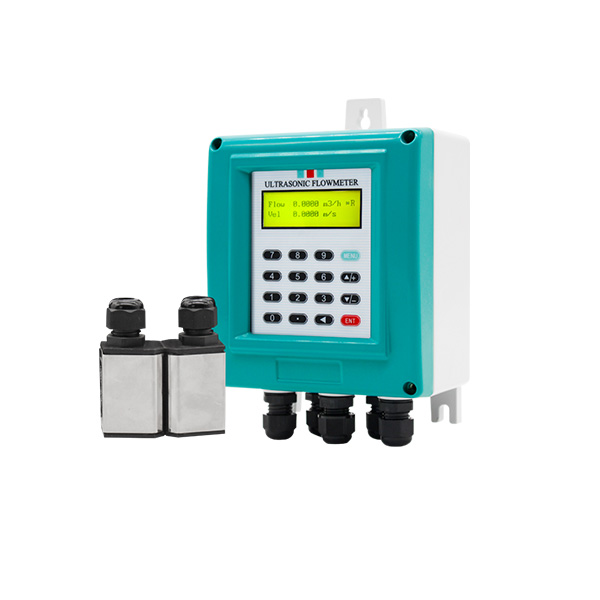

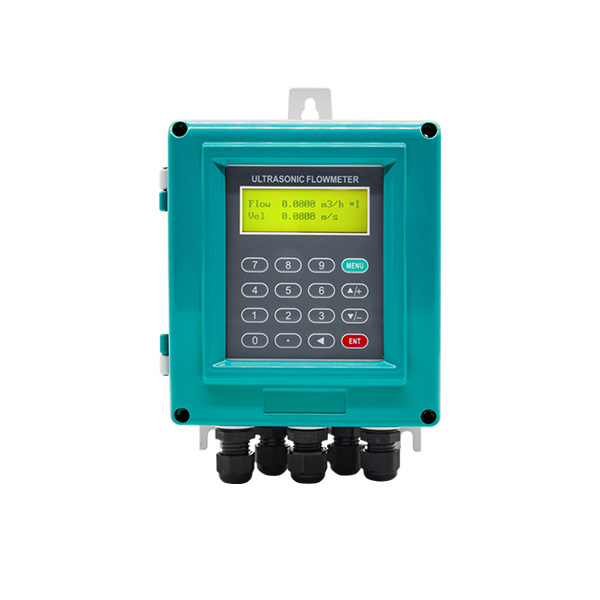

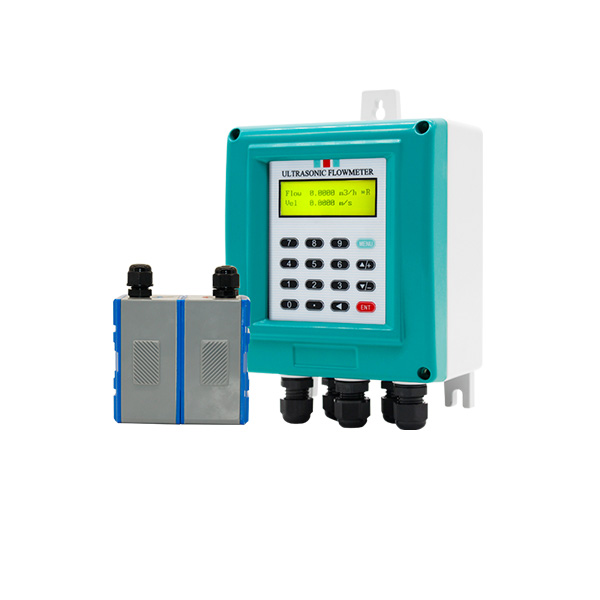

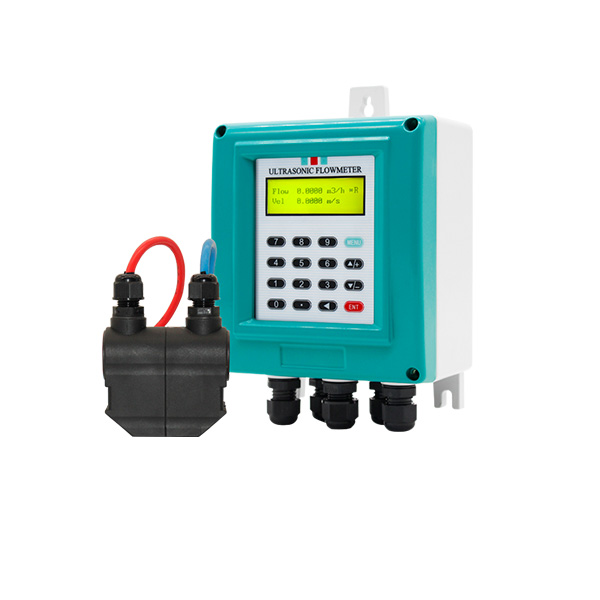

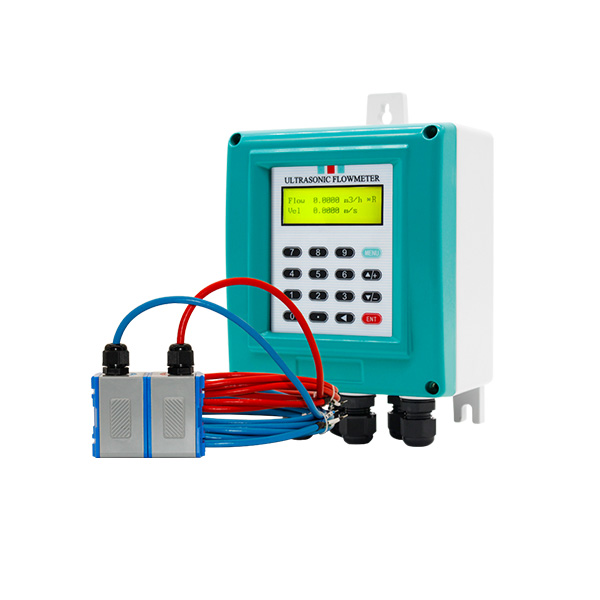

Introductions
WESDUN is a manufacturer specializing in the production of Wall-mounted ultrasonic flow meter;Clamp-on ultrasonic flow meter. WESDUN ultrasonic flow meter is a wall-mount, clamp-on or insertion type ultrasonic flow meter using transit-time technology.
Both Clamp on type sensors and Insertion type sensors are available. New designed using advanced chip and low-voltage broadband pulse transmission, ensure flow meter with high accuracy and repeatability for long term operation.

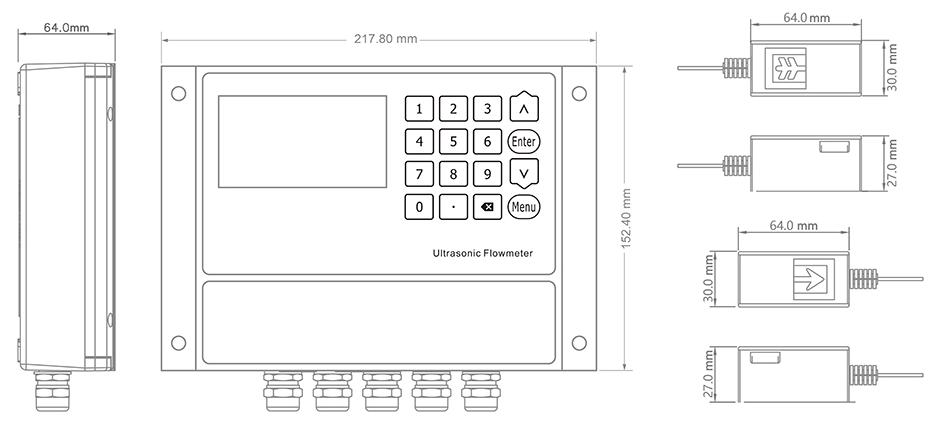

Main technical Parameters
| Size | DN25-DN1200mm (1″-48″)Under 1″ could be specially make as an option |
| Accuracy | ±1% of measured valve |
| Flow Range | ±0.09ft/s~±16ft/s(±0.03m/s~±5m/s) |
| Fluid | Single medium liquid |
| Pipe Material | Carbon steel, stainless steel, PVC and other compact material pipe |
| Power Supply | 10~36VDC/1A |
| Outputs | Analog output:4~20mA, max load 750Q Pulse output:0~10KHz |
| Communication | RS485 |
| Temperature | Transmitter:-14°F~140°F(-20°C~60°C) |
| Transducer:-40°F~176°F(-40°℃~80°C,standard) | |
| -40°F~176°F(-40°C~130°C,special) | |
| Humidity | Up to 99% RH,non-condensing |
| Protection | Transmitter: PC/ABS, IP65Transducer: ABS, IP68 |
| Cable | 9m (standard), Longer cable available |
Features
- Comparing with other traditional flow meter, Wall Mounted Ultrasonic Flow Meter has distinctive features such as high precision, high reliability and high capability.
- It adopt user-friendly menu design. British and metric measurement units are available.
- Support to check total flow for the last 64days and months as well as for the last 6 years.
- With SD card function optional, ultrasonic flow meter could achieve data storage for analysis.
Selection
| WESDUN | Specification | X | X | X | X | X | X |
| Signal | OCT,Relay,RS-232/RS-485,4-20 mA (Volumetric) | 1 | |||||
| OCT, Relay, RS-232/RS- 485, 4-20 mA, RTD input (Energy) *must select Code PT1000 or provide external temperature sensors | 2 | ||||||
| Type of transducers | Clamp-on,IP68.Operating temperature:-40°F~+176°F(-40℃~+80℃) | CD01 | |||||
| Clamp-on,IP68.2MHz Pipe size DN15 to DN25 only Operating temperature:32°F~140°F(0℃~+60°℃) | C2 | ||||||
| Clamp-on,IP68.Operating temperature:-40°F~+266°F(-40C~+130℃) | C1U | ||||||
| Insertion, IP68.Operating temperature:-40°F~+266°F(-40C~+130°℃) | W1 | ||||||
| Cable length | 9m (standard) | P9 | |||||
| 5m (standard for C2 only) | P5 | ||||||
| XXm(max 274m) | PXX | ||||||
| Temperature Sensor (BTU meter only) | Without a pair of clamp on PT1000 sensor 9m | WT | |||||
| With a pair of clamp on PT1000 sensor 9m | WA | ||||||
| Power Supply | DC10-36V | DC | |||||
| Special Function | None | N | |||||
| AC power,90-245VAC | AC | ||||||
| SD Card | SD | ||||||
| HART | H | ||||||
Installation

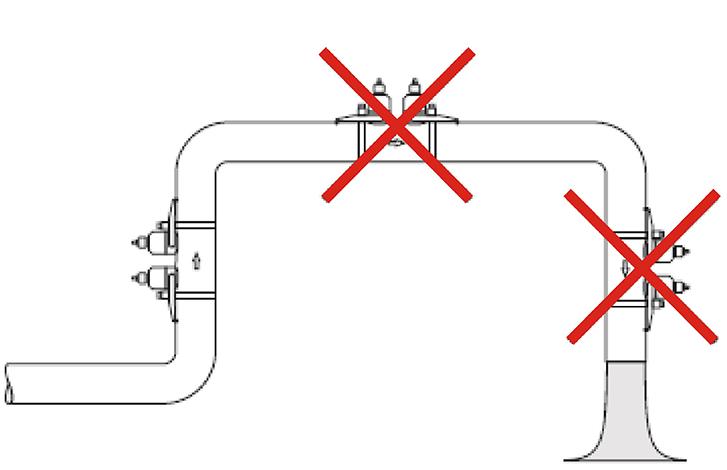

The first condition for ultrasonic flow meter is the pipe must be full of liquid, the bubbles will greatly influence the accuracy of the measurement, please avoid the following installation positions:
