Introductions

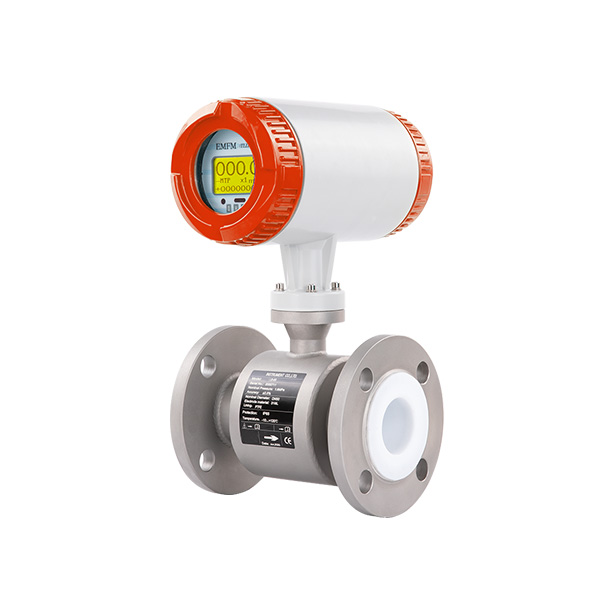

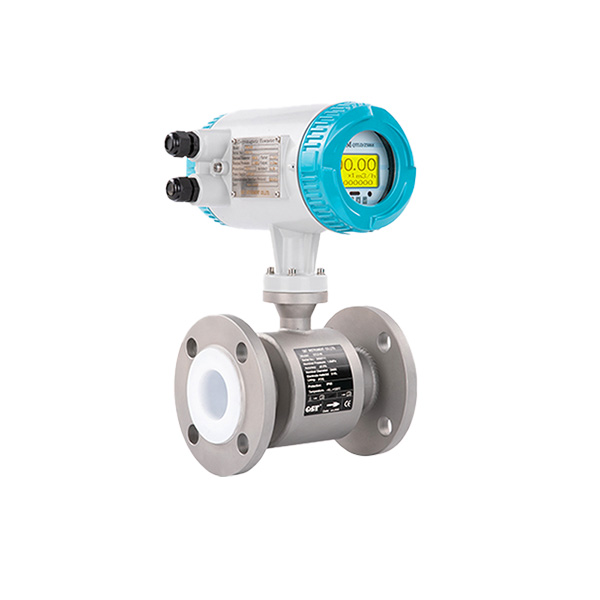

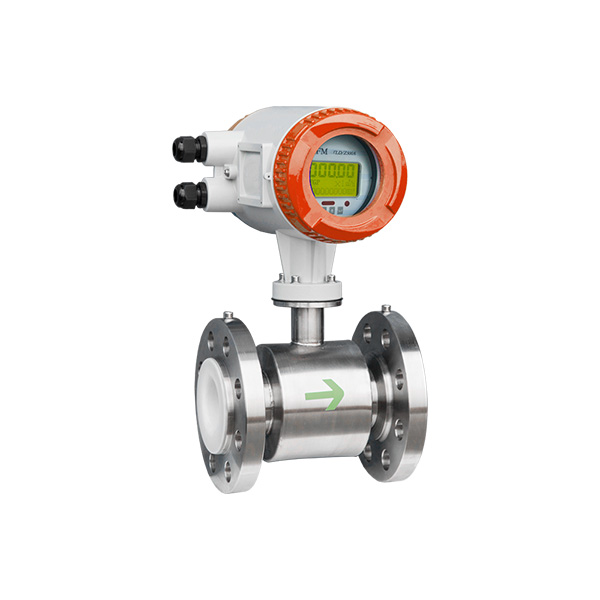

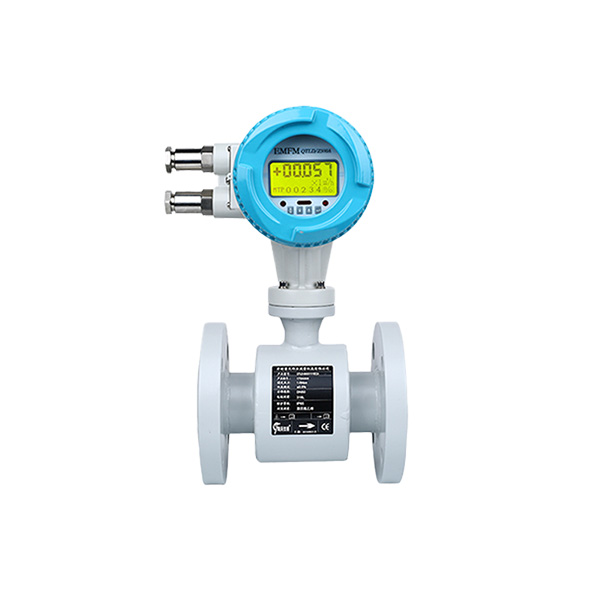

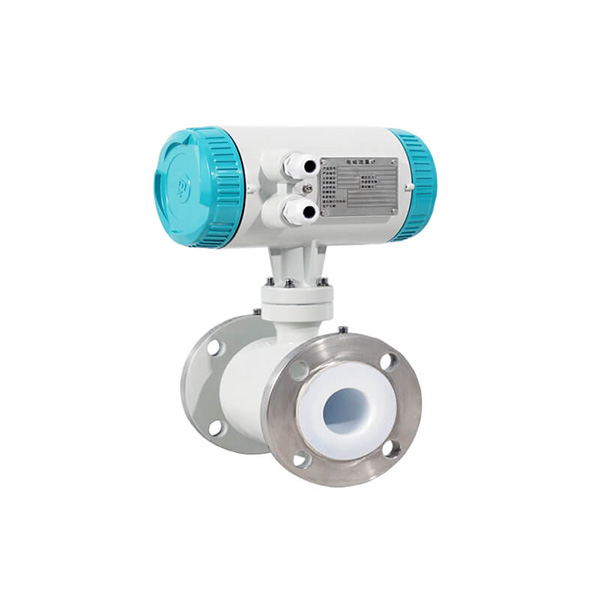

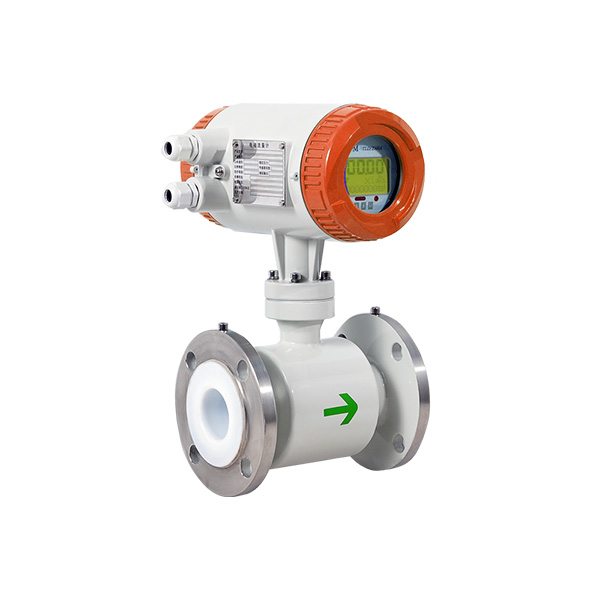

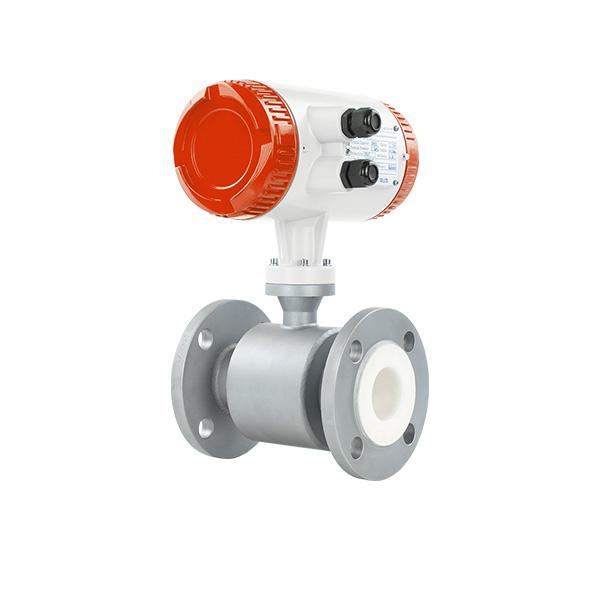

Electromagnetic flow meter consists of sensors and converters in two parts.
The product is based on Faraday’s law of electromagnetic induction, used to measure the conductance greater than 20 μS / cm volume of conductive liquid flow, In addition to measuring the general volume of conductive liquid flow, but also can be used to measure strong acid, alkali and other strong corrosive liquids and mud, pulp, pulp and other liquid-solid two-phase suspension of uniform volume flow.

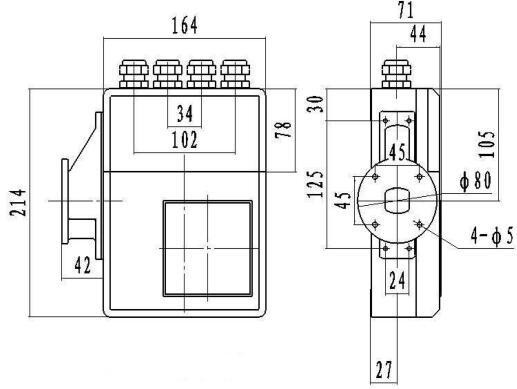

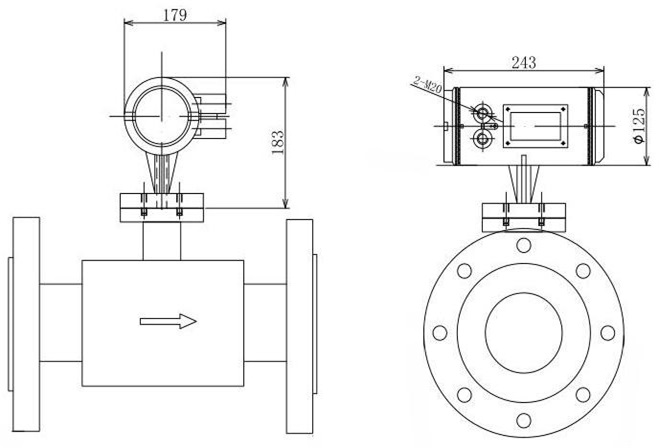

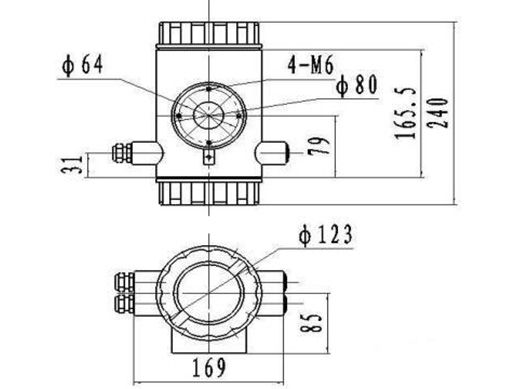

Parameters
| Nominal Diameter | External Dimension (mm) | Weight | |
| mm | L | D | Kg |
| 3 | 200 | 90 | 4 |
| 6 | 200 | 90 | 5 |
| 10 | 200 | 90 | 6 |
| 15 | 200 | 95 | 8 |
| 20 | 200 | 105 | 10 |
| 25 | 200 | 115 | 12 |
| 32 | 200 | 140 | 13 |
| 40 | 200 | 150 | 14 |
| 50 | 200 | 165 | 15 |
| 65 | 200 | 185 | 18 |
| 80 | 200 | 200 | 20 |
| 100 | 250 | 235 | 25 |
| 125 | 250 | 270 | 28 |
| 150 | 300 | 300 | 30 |
| 200 | 350 | 340 | 50 |
| 250 | 450 | 405 | 70 |
| 300 | 500 | 460 | 95 |
| 350 | 550 | 520 | 120 |
| 400 | 600 | 580 | 140 |
| 450 | 600 | 640 | 160 |
| 500 | 600 | 715 | 200 |
| 600 | 600 | 840 | 280 |
| 700 | 700 | 895 | 350 |
| 800 | 800 | 1015 | 400 |
| 900 | 900 | 1115 | 480 |
| 1000 | 1000 | 1230 | 550 |
| 1200 | 1200 | 1405 | 660 |
| 1400 | 1400 | 1630 | 750 |
| 1600 | 1600 | 1830 | 850 |
| 1800 | 1800 | 2045 | 980 |
| 2000 | 2000 | 2265 | 1200 |
| 2200 | 2200 | 2475 | 1600 |
| 2400 | 2400 | 2685 | 2000 |
| 2600 | 2600 | 2905 | 2400 |
| 2800 | 2800 | 2905 | 2700 |
| 3000 | 3000 | 3315 | 2900 |
Features
- Medium temperature: Integral type : -20℃~60℃ Remote type(Rubber&Polyurethane liner): -10℃~80℃ Remote type (PTFE&PFA&F46 liner): -10℃~160℃
- Integrated verification,diagnostic function and empty pipe detection.
- Measure forward and reverse direction flows.
- Built-in reference electrodes,no need to connect ground ring.
- Dual frequency excitation and stable zero point.
- Precision coil winding technology,makes magnetic field more uniform.
- High protection grade,IP65,IP68
- No moving parts,no pressure loss.
- High accuracy: ±0.5% of reading,±0.3% and ±0.2% optional,velocity >0.3 m/s.
Selections
| Selection | |||||||||
| WESDUN | xxx | X | X X | X | X | x | X | X | |
| Caliber | DN10-DN3000 3-digital codeseeing caliber code table 13 | ||||||||
| Nominal pressure | 0.6MPa | 1 | |||||||
| 1.0MPa | 2 | ||||||||
| 1.6MPa | 3 | ||||||||
| 4.0MPa | 4 | ||||||||
| Connection mode | Other | 5 | |||||||
| Flange connection | 1 | ||||||||
| Clamp connection | 2 | ||||||||
| Sanitary connection | 3 | ||||||||
| Liner material | PTFE | 1 | |||||||
| PFA | 2 | ||||||||
| Neoprene | 3 | ||||||||
| Polyurethane | 4 | ||||||||
| Ceramic | 5 | ||||||||
| Electrode material | 316L | 1 | |||||||
| Hastelloy B | 2 | ||||||||
| Hastelloy C | 3 | ||||||||
| Titanium | 4 | ||||||||
| Platinum-iridium | 5 | ||||||||
| Tantalum | 6 | ||||||||
| Stainless steel covered with tungsten carbide | 7 | ||||||||
| Structure type | Integral type | 1 | |||||||
| Remote type | 2 | ||||||||
| Remote type immerse | 3 | ||||||||
| Integral type Ex-proof | 4 | ||||||||
| Remote type Ex-proof | 5 | ||||||||
| Power | 220VAC 50Hz | E | |||||||
| 24VDC | G | ||||||||
| Output/ communication | Flow volume4-20mADC/pulse | A | |||||||
| Flow volume4-20mADC/RS232C communication | B | ||||||||
| Flow volume4-20mADC/RS485 communication | C | ||||||||
| Flow volume HART output/with communication | D | ||||||||
| Converter figure | Square | A | |||||||
| Circular | B | ||||||||
| Optional selection | |
| X | |
| 1 | Grounding electrode |
| 2 | Coupled flange |
| 3 | Entrance protection flange |
| 4 | Scraper type electrode |
| 5 | Other |
| caliber | code |
| 10 | 100 |
| 15 | 150 |
| 20 | 200 |
| 25 | 250 |
| 32 | 320 |
| 40 | 400 |
| 50 | 500 |
| 65 | 650 |
| 80 | 800 |
| 100 | 101 |
| 125 | 125 |
| 150 | 151 |
| 200 | 201 |
| 250 | 251 |
| 300 | 301 |
| 350 | 351 |
| 400 | 401 |
| 450 | 451 |
| 500 | 501 |
| 600 | 601 |
| 700 | 701 |
| 800 | 801 |
| 900 | 901 |
| 1000 | 102 |
| 1100 | 112 |
| 1200 | 122 |
| 1400 | 142 |
| 1500 | 152 |
| 1600 | 162 |
| 1800 | 182 |
| 2000 | 202 |
| 2200 | 222 |
| 2400 | 242 |
| 2600 | 262 |
| 2800 | 282 |
| 3000 | 302 |
Installation Notice

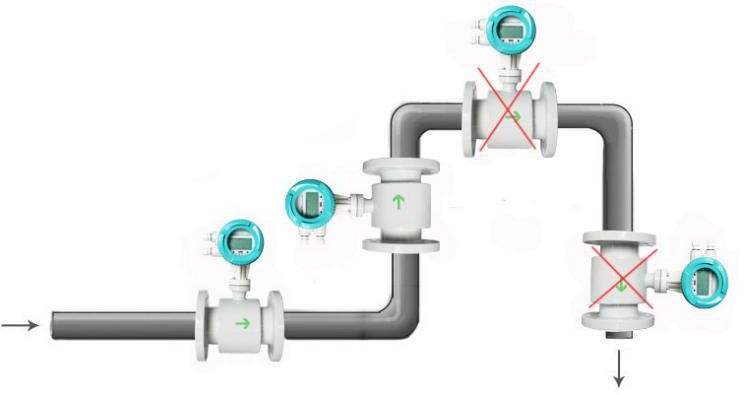

Installed at the lowest point and vertical upward direction
Don’t install at the highest point and vertical downward direction

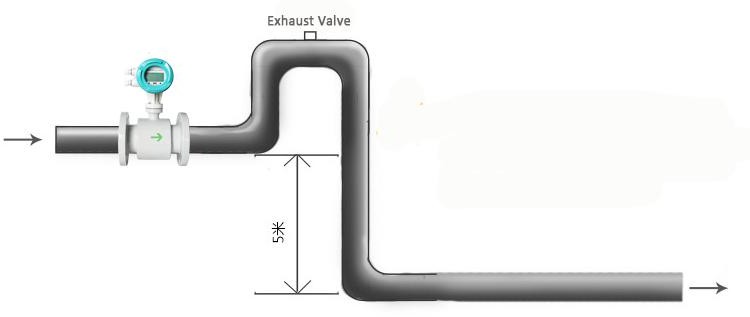

Install exhaust valve at the downstreat of flow meter when drop is more than 5m
Installed at the lowest point when used in open drain pipe
Dont’ install it at the entrance of pump, install it at the exit of pump Installed at the rising direction
Electrode Property
| SS316L | Applicable in water,sewage and corrosive mediums.Widely used in industries of petrol,chemistry,carbamide,etc |
| Stainless Steel Coveredwith tangsten carbide | Applicable in mediums of no corrosive and low abrasion. |
| Hastelloy B | Having strong resistance to hydrochloric acid of any consistance which is below bioling piont. Also resistable against vitriol,phosphate,hydrofluoricacid,organic acid etc,which are oxidable acid,alkali and non-oxidable salt. |
| Hastelloy C | Be resistant to oxidable acid such as nitric acid,mixed acid as well as oxidable salt such asFe+++,Cu++and sea water |
| Titanium | Applicable in seawater,and kinds of chloride,hypochlorite salt,oxidable acid(including fuming nitric acid),organic acid,alkali etc.Not resistant to a pure reducing acid(such as sulphuric acid,hydrochloric acid)corrosion.Acid contains antioxidant(such as Fe+++,Cu++)will greatlyreduce corrosion. |
| Tantalum | Having strong resistance to corrosive mediums that is similar with glass. Almost applicable in allchemical mediums.Except for hydrofluoric acid,oleum and alkali. |
| Platinum-iridium | Almost be applicable in all chemical mediums except for aqua fortis,ammonium salt. |
