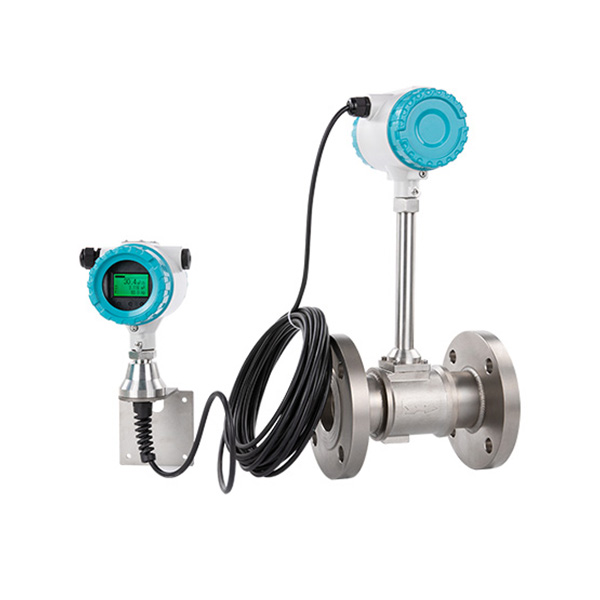

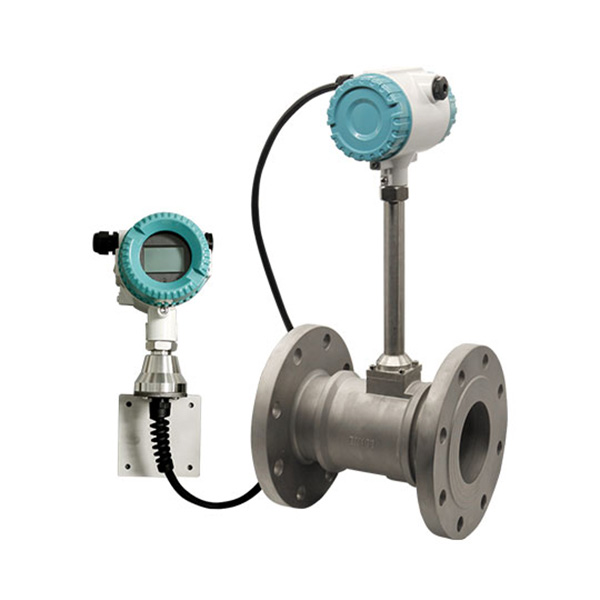

Remote Type Vortex Flow Meter

Size: DN15-DN300
Nominal Pressure:PN16,PN25,PN40,PN64
Accuracy: 1.0%
Medium Temperature:-40℃~+200℃; -40℃~+280℃; 40℃~+350℃
Body Material:SS304,SS316L
Signal Output:4~20 mA,pulse
Flow Range: Liquid:0.4-7.0m/s; Gas:4.0-60.0m/s; Steam:5.0-70.0m/s

WhatsApp Send Email

Leave Message

Introductions

WESDUN is a manufacturer specializing in the production of Remote type vortex flow meter;DN15 flow meter;Steam flow meter.Remote Type Vortex Flow Meter is used in numerous branches of industry to measure the volume flow of liquids, gases and steam.

Applications in the chemicals and petrochemicals industries, for example, in power generation and heat-supply systems involve widely differing fluids: saturated steam, superheated steam, compressed air, nitrogen, liquefied gases, flue gases, carbon dioxide, fully demineralized water, solvents, heat-transfer oils, boiler feedwater, condensate, etc.

Main technical Parameters

Technical Performance Parameters
Measured Medium	Liquid, Gas, Steam
Medium Temp	-40℃~+200℃;-40℃~+280℃;40℃~+350C
Nominal Pressure	1.6MPa;2.5MPa;4.0MPa;6.4MPa (Other pressure can be custom,need consult supplier)
Accuracy	1.0%(Flange),1.5%(Insertion)
Measuring range ratio	1:10(Standard air condition as reference)1:15(Liquid)
Flow Range	Liquid:0.4-7.0m/s;Gas:4.0-60.0m/s;Steam:5.0-70.0m/s
Specifications	DN15-DN300(FIange),DN80-DN2000(Insertion),DN15-DN100(Thread),DN15-DN300(Wafer),DN15-DN100(Sanitary)
Material	SS304(Standard),SS316(Optional)
Pressure Loss Coefficient	Cd≤2.6
Vibration Acceleration Allowed	≤0.2g
IEP ATEX	II 1G Ex ia IIC T5 Ga
Ambient Condition	Ambient Temp:-40°C-65°C(Non-explosion-proof site);-20°C-55°C(Explosion-proof site)Relative Humidity:≤85%Pressure:86kPa-106kPa
Power Supply	12-24V/DC or 3.6V battery powered
Signal Output	Pulse frequency signal2-3000Hz, Low level≤1V, high level≥6V
Signal Output	Two-wire system 4-20 signal(isolated output),Load≤500

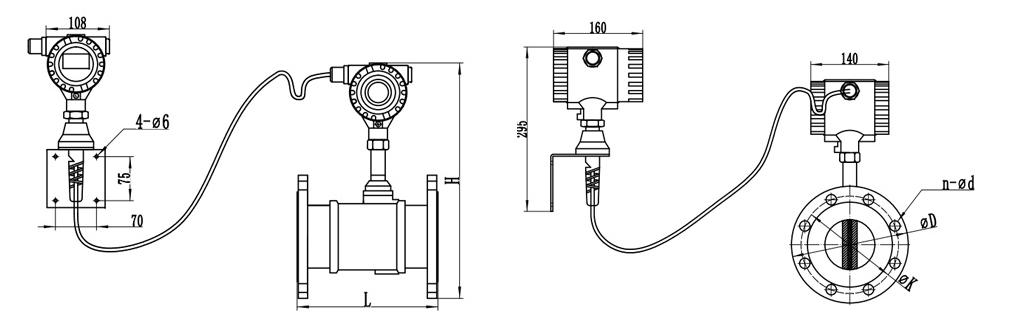

Caliber(mm)	L	H	D	K	n	d
15	170	440	95	65	4	14
20	170	446	105	75	4	14
25	170	450	115	85	4	14
32	170	463	140	100	4	18
40	190	465	150	110	4	18
50	190	470	165	125	4	18
65	220	487	185	145	4	18
80	220	500	200	160	8	18
100	240	533	220	180	8	18
125	260	560	250	210	8	18
150	280	608	285	240	8	22
200	300	640	340	295	12	22
250	360	705	405	355	12	26
300	400	408	460	410	12	26

Flow Range
Size(mm)	Liquid(Reference medium: normal temperature water ,m3 /h)		Gas(Reference medium:20℃,101325pa condition air, m3/ h)
Size(mm)	Standard	Extended	Standard	Extended
15	0.8~6	0.5~8	6~40	5~50
20	1~8	0.5~12	8~50	6~60
25	1.5~12	0.8~16	10~80	8~120
40	2.5~30	2~40	25~200	20~300
50	3~50	2.5~60	30~300	25~500
65	5~80	4~100	50~500	40~800
80	8~120	6~160	80~800	60~1200
100	12~200	8~250	120~1200	100~2000
125	20~300	12~400	160~1600	150~3000
150	30~400	18~600	250~2500	200~4000
200	50~800	30~1200	400~4000	350~8000
250	80~1200	40~1600	600~6000	500~12000
300	100~1600	60~2500	1000~10000	600~16000
400	200~3000	120~5000	1600~16000	1000~25000
500	300~5000	200~8000	2500~25000	1600~40000
600	500~8000	300~10000	4000~40000	2500~60000

Flow Range
Size(mm)	Liquid(Reference medium: normal temperature water ,m3 /h)		Gas(Reference medium:20℃,101325pa condition air, m3/ h)
Size(mm)	Standard	Extended	Standard	Extended
15	0.8~6	0.5~8	6~40	5~50
20	1~8	0.5~12	8~50	6~60
25	1.5~12	0.8~16	10~80	8~120
40	2.5~30	2~40	25~200	20~300
50	3~50	2.5~60	30~300	25~500
65	5~80	4~100	50~500	40~800
80	8~120	6~160	80~800	60~1200
100	12~200	8~250	120~1200	100~2000
125	20~300	12~400	160~1600	150~3000
150	30~400	18~600	250~2500	200~4000
200	50~800	30~1200	400~4000	350~8000
250	80~1200	40~1600	600~6000	500~12000
300	100~1600	60~2500	1000~10000	600~16000
400	200~3000	120~5000	1600~16000	1000~25000
500	300~5000	200~8000	2500~25000	1600~40000
600	500~8000	300~10000	4000~40000	2500~60000

Features

Vortex flow meter body is robust and universally applicable for liquids, gases and steam,optimized for steam applications.
In gas measurement, vortex flow meter could achieve high accuracy ±0.75%~±1.0% of reading ( gas ±1.0%, liquid ±0.75%); which could use in custody transfer , while the metal tube rotameter or orifice plate usually use for process control.
To protect the sensor, WESDUN vortex flow meter choose embedded sensor, with piezo-electric crystal encapsulated inside the sensor, which is our own patent.

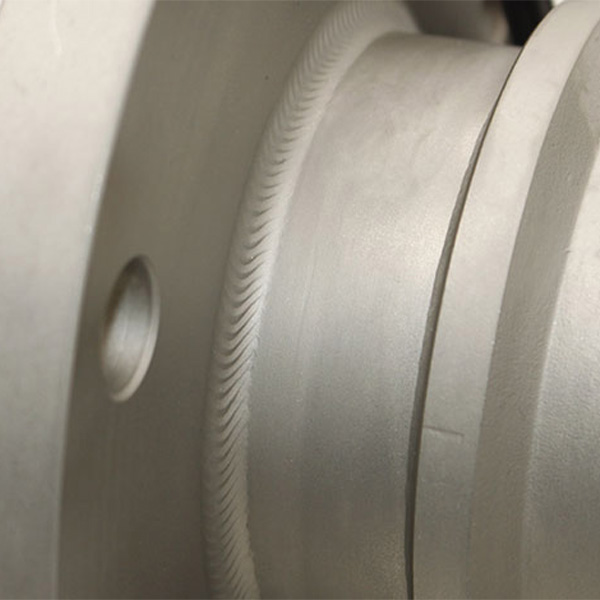

There is no moving parts, no abrasion, non-wearing parts inside the vortex flow meter sensor, fully welded SS304 body (SS316 select able).
With patented sensor and flow sensor body, it could eliminate drift & vibration influence from great aspect in the working site while compare with other flow meters.
With a variety of signals outputs and selection, such as 4-20mA, pulse with HART or pulse with RS485 are selectable.

Selection

WESDUN

X

Caliber

DN15-300mm/1/2″-12″

Measured Medium

Saturated Steam

S

Superheated Steam

M

Common Gas

C

Liquid

L

Others

O

Nominal Pressure

0.6MPa

1

1.0MPa

2

1.6MPa

3

2.5MPa

4

4.0MPa

5

Nominal Temperature

-40℃-250℃

2

-40℃-350℃

3

Structure

Compact type

C

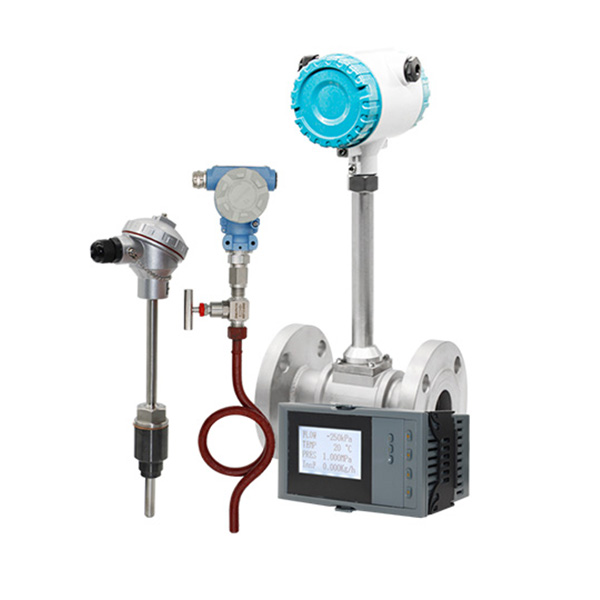

Remote type (converter display)

R1

Remote type (flow computer remote display)

R2

Connection

Flange(DN15-300mm)

PN1D/PN1G/PN25/PN4O(DIN)

D**

A15:150#,A30:300#(ANSI)

A**

10K/20K/30K/40K(JIS)

J**

Wafer(DN15-300mm)

W

Thread(DN15-100mm)

T

Insertion(DN8O-2000mm)

I

Body Material

SS304(standard)

4

SS316

6

Compensation

Without

WO

With temperature compensation

WT

With pressure compensation

WP

With temperature & pressure compensation

W2

Output

4-20mA,pulse,RS485

A

4-20mA,pulse,HART (converter display only)

B

Power Supply

DC24V

D

3.6V Battery Powered (converter display only)

B

AC220V (flow computer type only)

A

Ex-Proof

Without

W

With (Exia ll CT5 Ga)

E

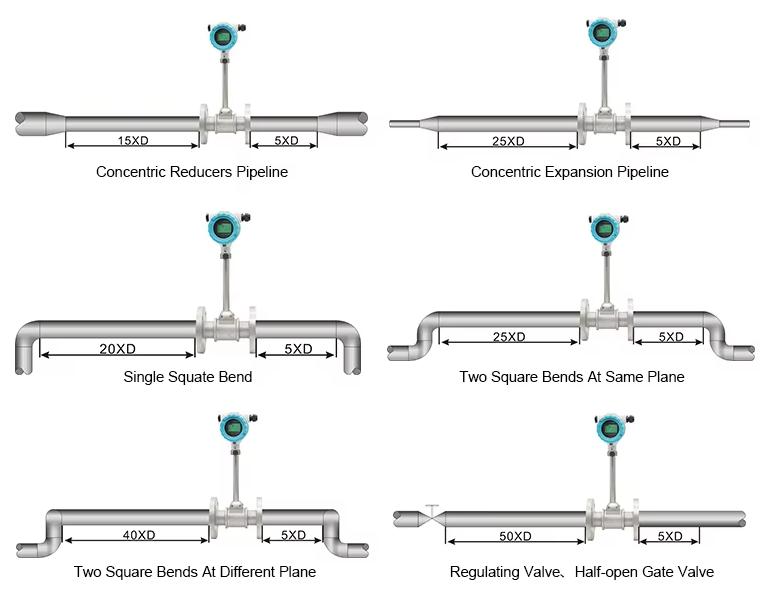

Installation
