Application
LXSG 15-25 IC card prepaid water meter is designed to solve the problem of charging water meters for residential use. It is widely used in apartment buildings,shopping malls,villas and ordinary residential scenes.
- Pay now,water later
- IP68 protection level
- Mechanical and electronic separable design for better maintenance
- Card type recharge will be more convenient and safe
- The IC card and the water meter will be bound to each other to avoid additional losses and dangers
- Regular automatic valve rotation to reduce scale adhesion
- High capacity battery ensures battery life of more than 8 years
Technical Features
- No measurement of air
- Multi-flow,dry type
- Q3/Q1=R100/160(optional)
- Supports installation at Horizontal
- IP68 suitable for outdoor installations
- Temperature class T30,T50,T90
- Environment class E1/M1
- Unidirectional flow measurement
- Nominal pressure PN10(polymer body),PN16(Brass body)
- U10/D5,straight pipe sections required before or after the meter
- Brass,polymer(composite)material body(Optional)

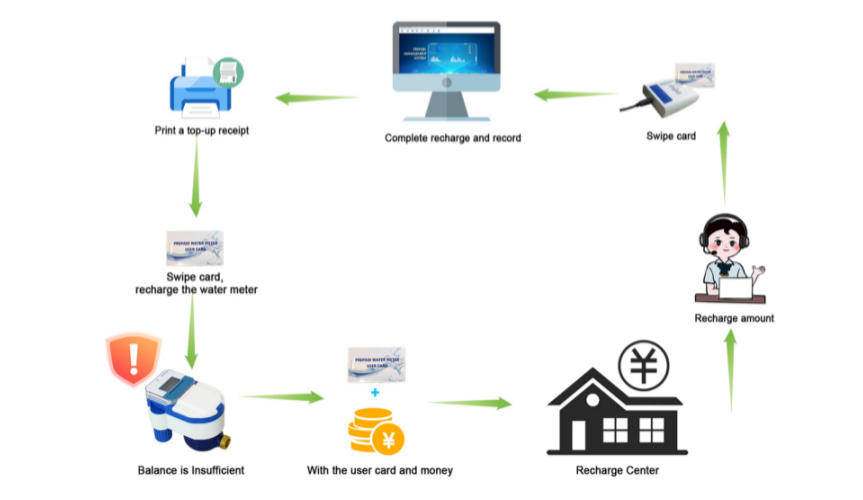

System Construction
Technical Features

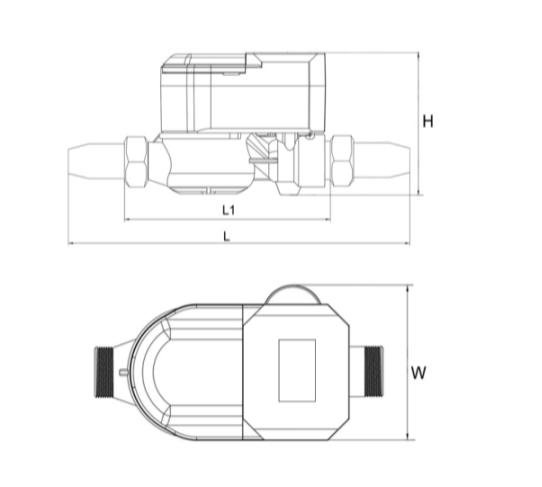

| MODEL | L | L1 | W | H | Connection (Meter) | Connection (nut) |
| DN | mm | mm | mm | mm | G | R |
| S10-15 | 165 | 260 | 90 | 110 | G³/4B | R1/2 |
| S10-20 | 195 | 300 | 90 | 110 | G1B | R3/4 |
| S10-25 | 225 | 346 | 90 | 110 | G1 1/4B | R1 |
| MODEL | L | L1 | W | H | Connection (Meter) | Connection (nut) |
| DN | mm | mm | mm | mm | G | R |
| S10-15 | 165 | 260 | 90 | 110 | G3/4B | R1/2 |
| S10-20 | 195 | 300 | 90 | 110 | G1B | R3/4 |
| S10-25 | 225 | 346 | 90 | 110 | G1 3/4B | R1 |
