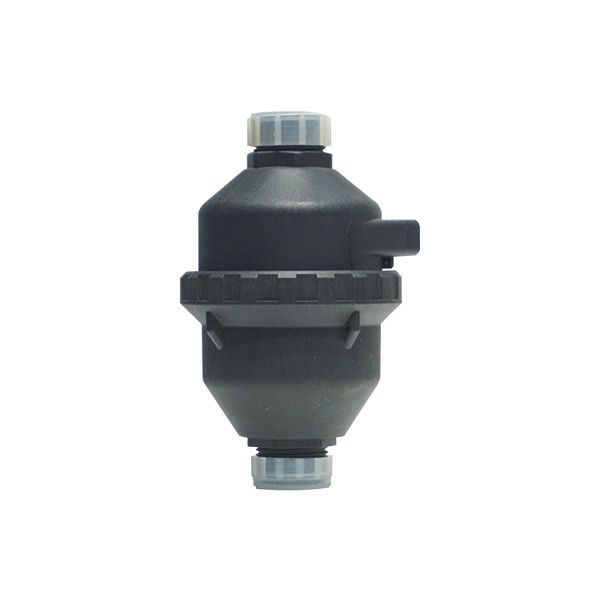

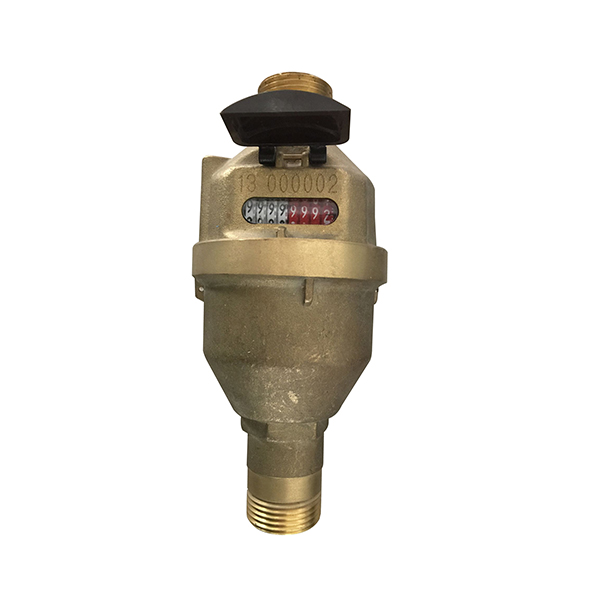

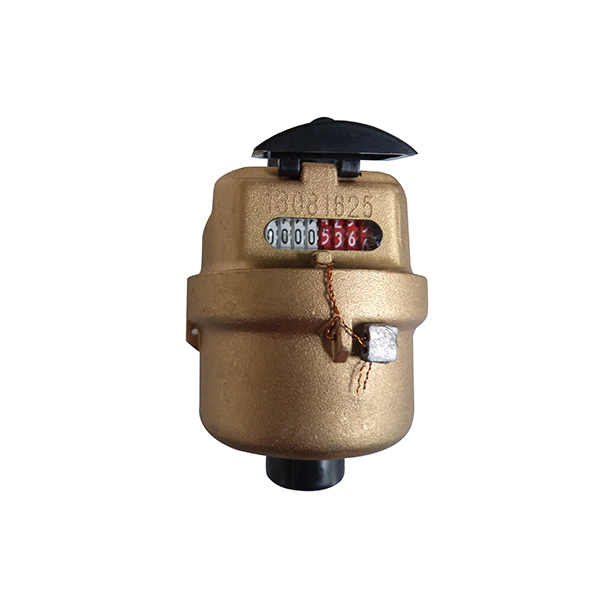

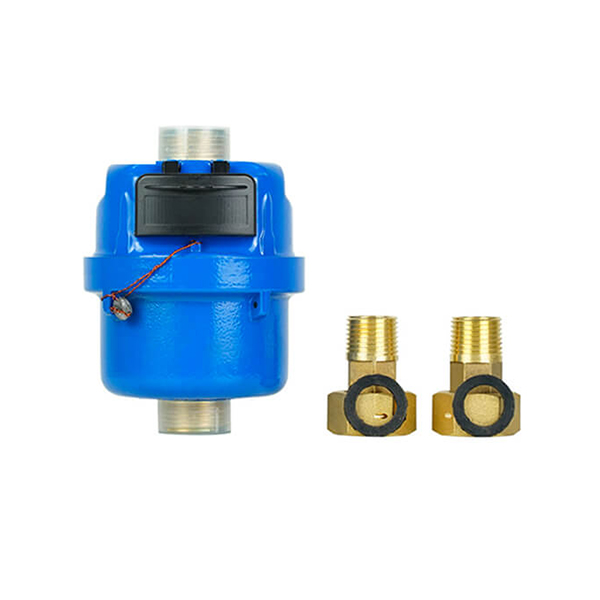

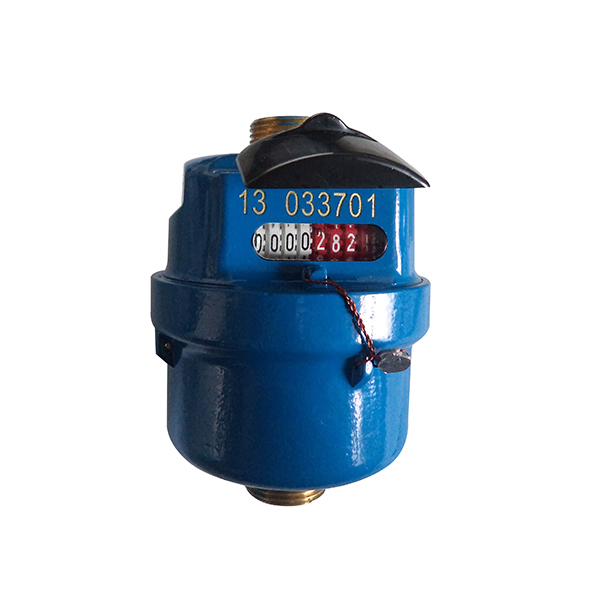

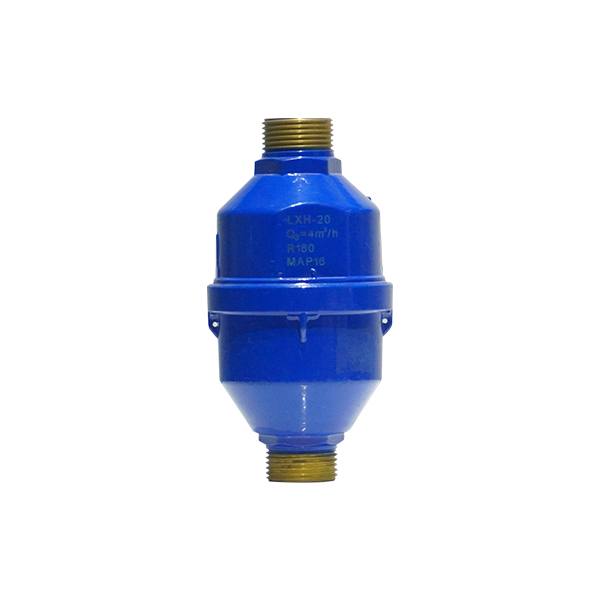

This type of water meter can be used for a remote reading transmission system is equipped with a built-in sensor.WESDUN is a manufacturer specializing in the production of Remote transmission;DN15 water meter;Volumetric water meter.

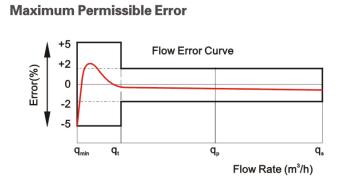

Main Technical Parameters
| Description | Unit | Hydraulic Data and Dimensions | ||||
| Nominal Size | mm(Inch) | DN15 | DN20 | DN25 | DN32 | DN40 |
| 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | ||
| Q4 Error Limit | m3/h | 3.125 | 5 | 7.875 | 12.5 | 20 |
| ±2% | ||||||
| Q3 Error Limit | m3/h | 2.5 | 4 | 6.3 | 10 | 16 |
| ±2% | ||||||
| Q2 Error Limit | l/h | 25 | 40 | 63 | 100 | 160 |
| ±2% | ||||||
| Q1 Error Limit | l/h | 15.6 | 25 | 39.4 | 62.5 | 100 |
| ±5% | ||||||
| Min.Reading | I | 0.05 | 0.05 | 0.05 | 0.5 | 0.5 |
| Max.Reading | m3 | 9999.9999 9999.9999 9999.9999 9999.9999 9999.9999 | ||||
| MAP | MPa | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 |
| Press Loss Δ PAT Q3 | MPa | ≤0.063 | ≤0.063 | ≤0.063 | ≤0.063 | ≤0.063 |

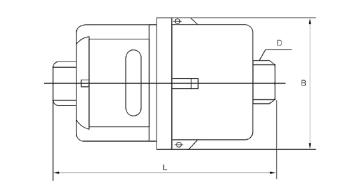

| mm | 195 | 267 | 319 | 384 | 428 | |
| mm | 115 | 165 | 199 | 260 | 300 | |
| mm | 43 | 43 | 53 | 60 | 77 | |
| Without Connections | kg | 1.14 | 1.56 | 2.48 | 3.47 | 5.65 |
| Without Connections | kg | 0.97 | 1.3 | 2.05 | 2.75 | 4.7 |
| Dial Picture | Measure Unit |
 | Measure Unit: CBM |
| 8 Wheels | |
| Four red, four white wheel. | |
| The minimum reading:1L | |
 | Measure Unit: CBM |
| 8 Wheels | |
| Three red, five white wheel. | |
| The minimum reading:10L | |
 | Measure Unit: CBM |
| 8 Wheels | |
| One red, seven white wheel. | |
| The minimum reading:1UK Gallon | |
 | Measure Unit:UK Gallon |
| 8 Wheels | |
| All white wheel | |
| The minimum reading:10UK Gallon | |
 | Measure Unit:UK Gallon |
| 8 Wheels | |
| One red, three black, four white wheel | |
| The minimum reading: 1 US Gallon |
| Pulse Position | |
| Magnet Position | Liter/Pulse |
| *0.001 | 1 |
| *0.001 | 10 |

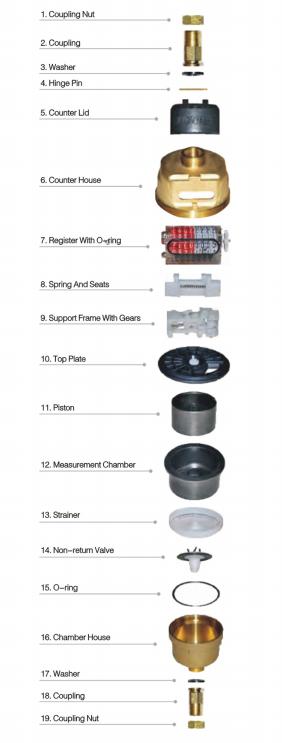

Features
- Low start-up flow rate.
- Volumetric rotary piston principle of measurement.
- The LXHY-15~20 water meter has no installation location restrictions. Its accuracy stays unaffected when mounted on horizontal, vertical or inclined pipelines. The register adopts a special liquid seal to maintain clear readings throughout long-term service.
- The mechanism uses high-quality materials to ensure stable performance. It provides accurate measurement that complies with ISO 4064 Class C. Upon request, we can equip this series with a remote transmission device.
