Application:

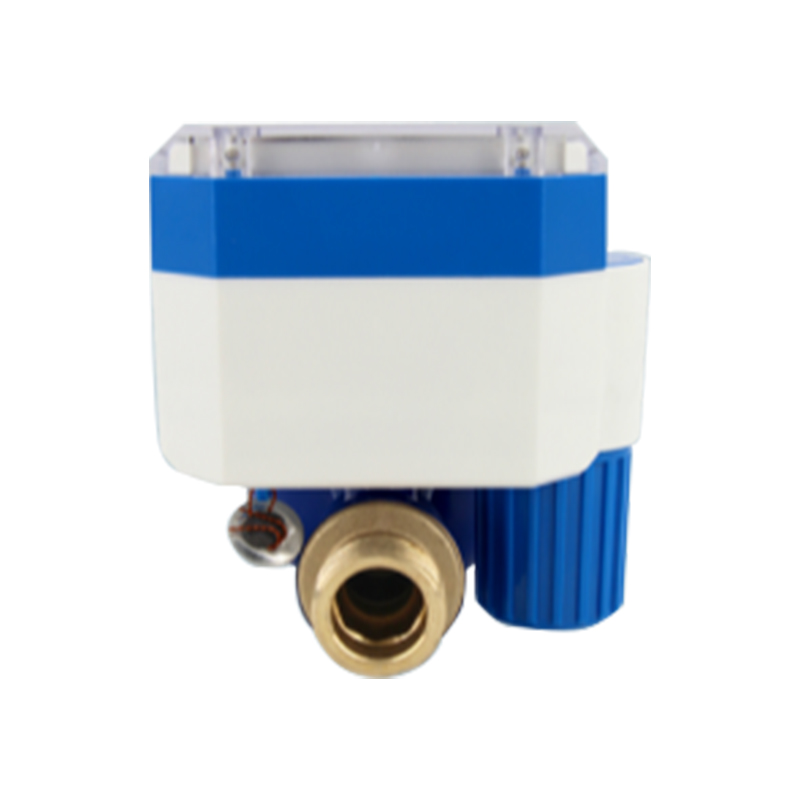

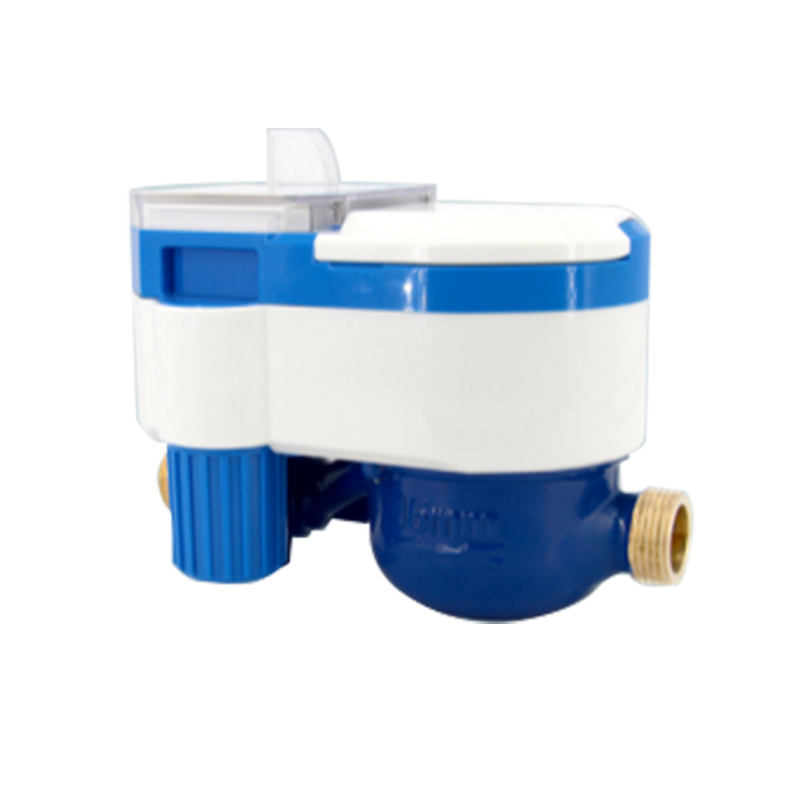

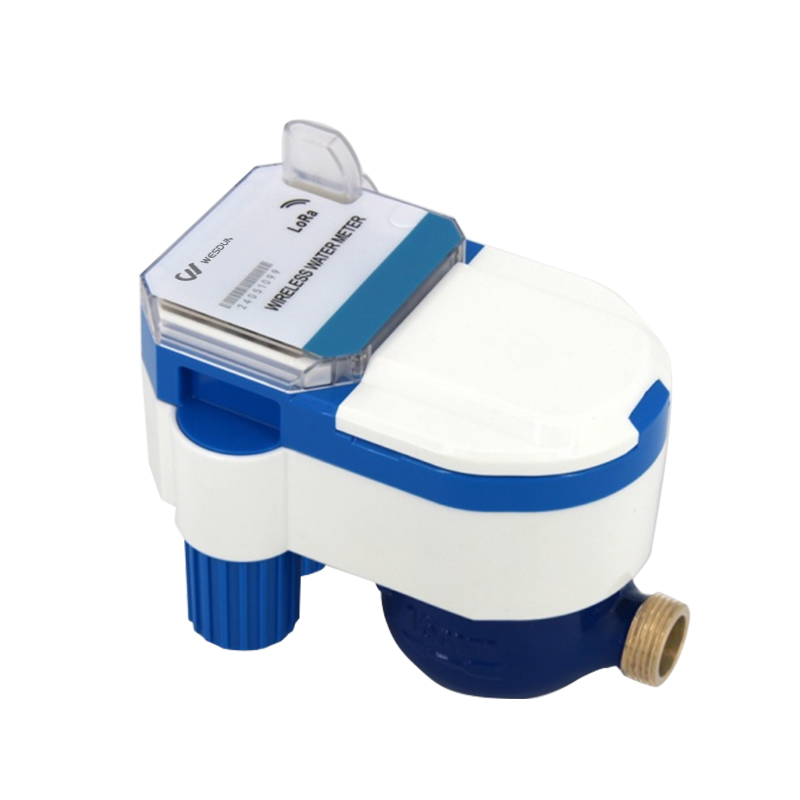

LXSG 15-25 LoRa Wireless Water Meter, designed for efficient and remote water management.This innovative device integrates advanced LoRa communication technology,ensuring reliable long- distance data transmission and precise control of water flow.
- Remote and automated water flow management;
- Remote control restricts water usage to ensure income;
- Real-time Monitoring,accurate water usage tracking;
- Durable Design:IP68 rated for harsh conditions;
- Extended Battery Life:Provides long-lasting performance with minimal maintenance;
- Efficient Installation:Designed for quick and straightforward setup;
- Wide Compatibility:Compatible with various water management platforms.
Technical Features:
Electrical parameter
- Standby Power Consumption:15uA
- Peak Power Consumption:50mA
- Transmission Frequency:Once per day
- Battery Life:8/10 years(Optional)
Part of structure
- Multi-flow,dry type;
- Q3/Q1=R100/160(optional);
- Supports installation at Horizontal;
- IP68 suitable for outdoor installations;
- Temperature class T30,T50,T90;
- Environment class E1/M1;
- Nominal pressure PN10;
- U10/D5,straight pipe sections required before or after the meter;
- Brass and nylon bodies are available.

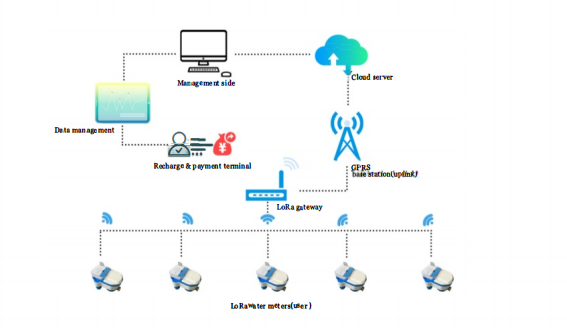

Product operation concept map
Technical Features
| MODEL | Q4 | Q3 | Q2 | Q1 | R(Q3/Q1) | Pressure loss class |
| DN | n³ /h | n³/h | L/h | L/h | / | △P(bar) |
| S10-15 | 3.125 | 2.5 | 40 | 25 | R100 | 0.63 |
| 25 | 15.6 | R160 | ||||
| S10-20 | 5 | 4 | 64 | 40 | R100 | 0.63 |
| 40 | 25 | R160 | ||||
| S10-25 | 7.875 | 6.3 | 100 | 63 | R100 | 0.63 |
| 63 | 39.3 | R160 |

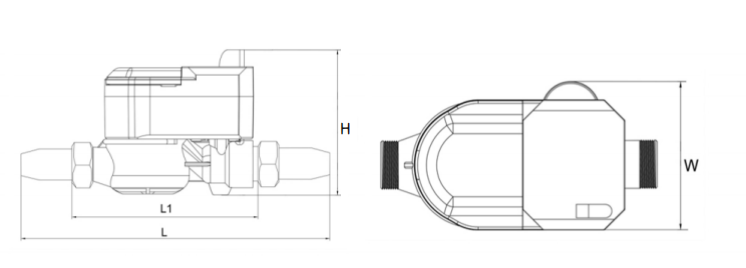

| MODEL | L | L1 | W | H | Connection (Meter) | Connection (nut) |
| DN | mm | mm | mm | mm | G | R |
| S10-15 | 165 | 260 | 90 | 110 | G3/4B | R1/2 |
| S10-20 | 195 | 300 | 90 | 110 | G1B | R3/4 |
| S10-25 | 225 | 346 | 90 | 110 | G1 3/4B | R1 |
