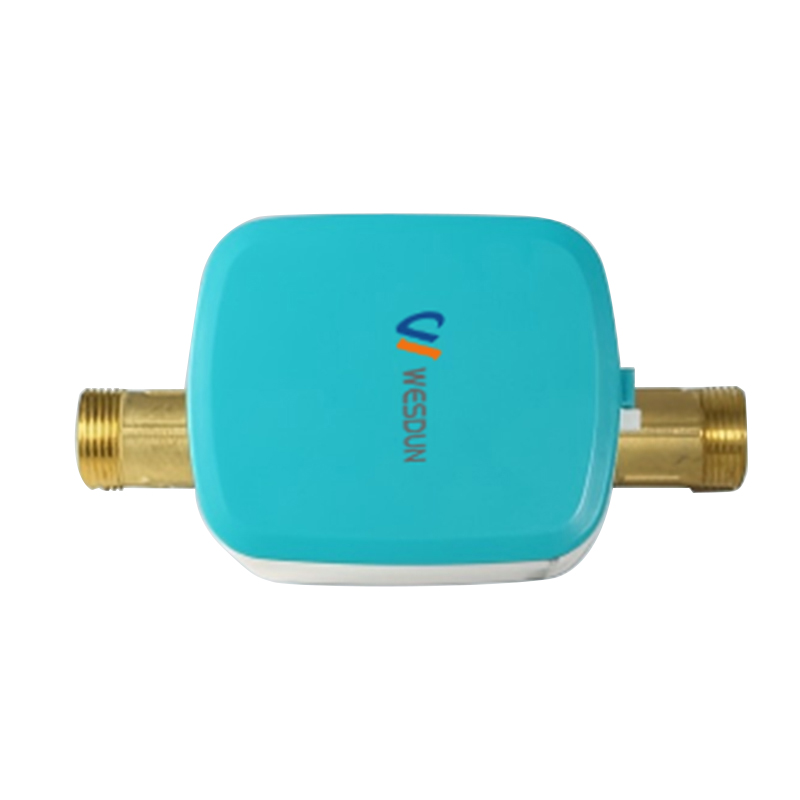

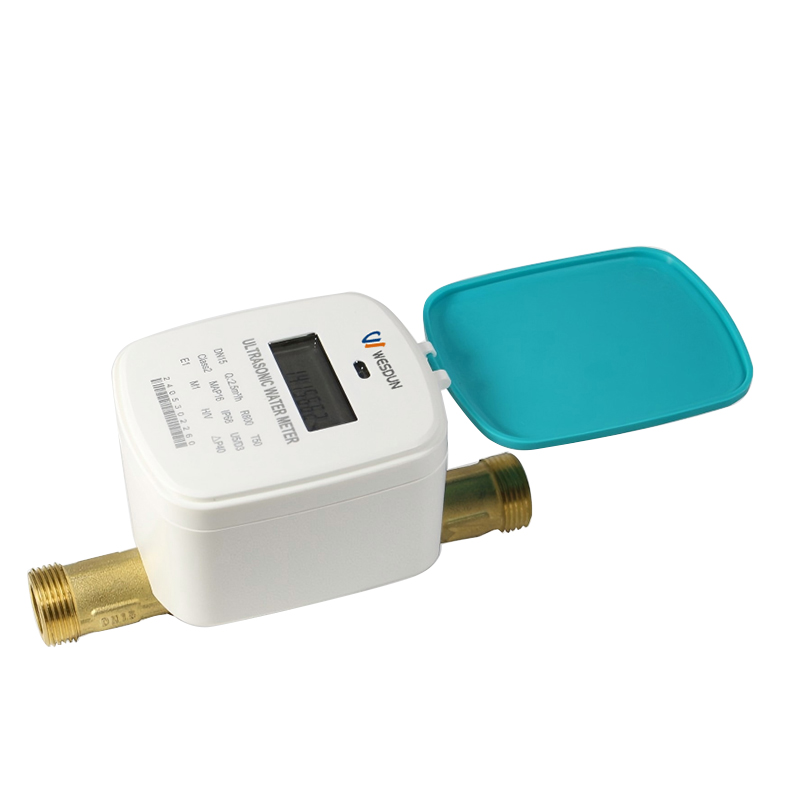

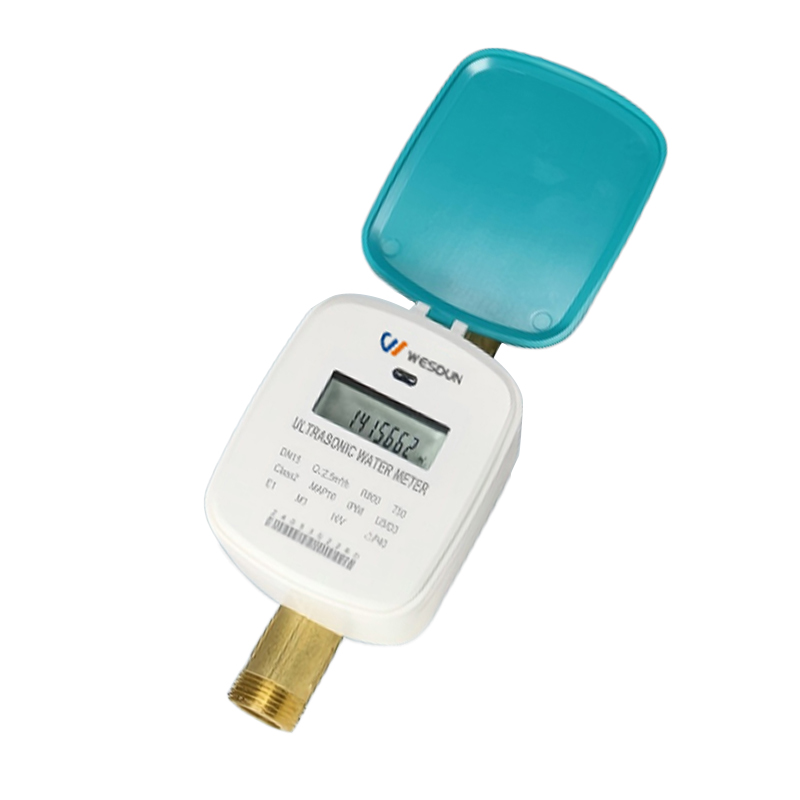

S14 LXC 15-40 Ultrasonic wate meter

Application

S14 LXC 15-40 Ultrasonic wate meter is designed for accurate measurement of cold water consumption in households, apartment buildings, and commercial premises.

• Have more accurate measurements;
• No moving parts design to reduce wear;
• Reliable design supports long-term stable operation;
• The water consumption value can still be accurately obtained at a low flow rate of 3L/h;
• Record total volume as small as 1mL;
• 9 digits LCD.Total volume and instantaneous flow rate indication;
• Low power consumption circuit board design extends service life up to 10 years;
• Ready for AMR with wired and wireless communication technologies.

Technical Features

• No measurement of air;
• Nominal flow 2.5, 4.0, 6.3, 10.0m³/h;
• Q3/Q1=R160,250,400,630,800(optional);
• Supports installation at any position or angle;
• IP68 suitable for outdoor installations;
• Temperature class T30,T50,T70(customizable);
• Environment class E1/M1;
• Nominal pressure PN10/16;
• Bi-directional flow measurements;
• UO/D0 or U5/D3,straight pipe sections required before or after the meter;
• Copper, polymer(composite)material, stainless steel body(Optional).
• Display with error and alarm codes including leakage detection.

S14 LXC 15-40 Ultrasonic wate meter Amr Ready

• Wired: RS485 modbus;
• Wired: Pulse;
• Wireless: LoRa, LoRaWAN(EU863-870, AS923, AU915-928, US902-928, IN865-867 channel plans);
• Wireless: W M-BUS;
• Wireless:GPRS(2G/4G);
• Infrared reading.
