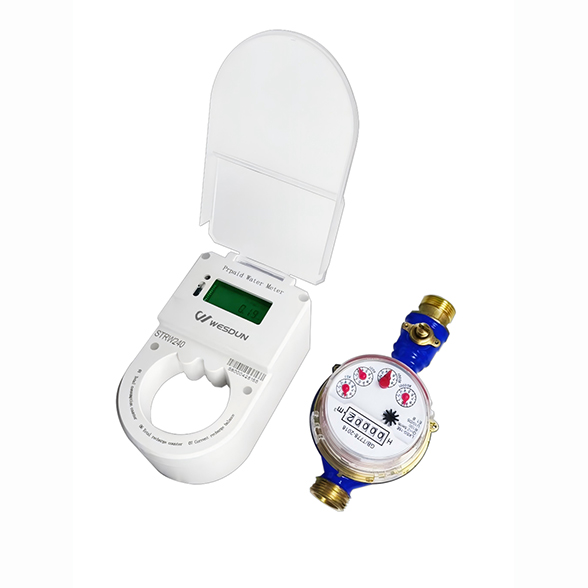

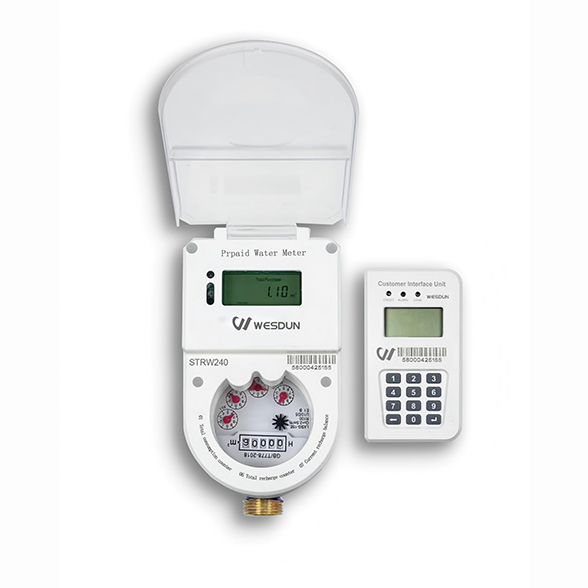

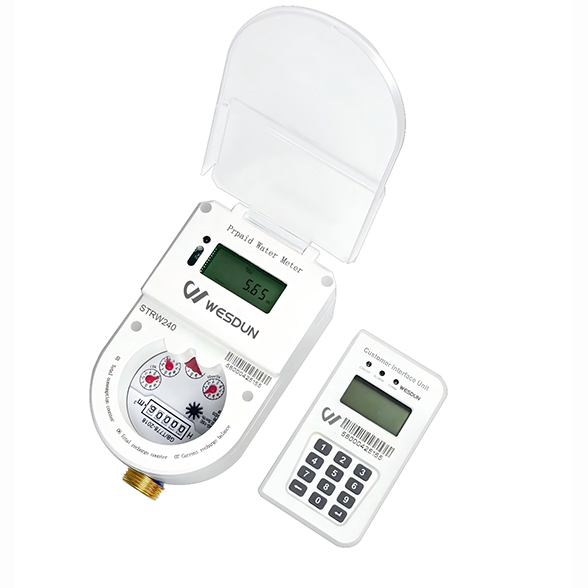

The split-type prepaid water meter accurately measures water consumption in both residential and commercial settings. Featuring a prepayment function and an advanced remote monitoring system, it delivers an efficient and user-friendly solution for modern water management.
With LoRa RF wireless technology, the meter simplifies the recharge process. Users can top up seamlessly through an intuitive interface. Real-time data transmission enables water supply departments to monitor usage trends, optimize resource allocation, and improve operational efficiency.
We strictly manufacture the split-type prepaid water meter in line with ISO9001 and ISO14001 standards. It meets the highest industry standards and ensures stable performance and long-term durability.
Functions
- Tamper Detection: Upon detecting magnetic interference, the meter will automatically close the valve. Service can only be restored by entering a clear tamper Token.
- Multi Tariff: Supporting configurable tiered pricing, the meter allows TOKEN-authorized setup of progressive rate tiers (up to 3 tariff steps).
- Event Log: Comprehensively logs tamper alarms (magnetic/valve events), decade-long consumption data (monthly/hourly), and enables real-time queries via short codes for balance/trend monitoring.
- Real-time Clock: Featuring a high-precision clock, the meter maintains accurate timestamps for all logged events and scheduled functions.
- Credit Alarming: The system triggers an alert when the remaining water credit falls below a user-defined threshold. The alarm value can be configured by entering a specific TOKEN code.
- Recharge Limitation: The meter prevents overstocking by rejecting recharge requests when the sum of remaining water and new recharge exceeds the preset limit.
- Emergency Overdraft: It supports emergency water access when the account balance runs out, and users can repay the overdrawn amount flexibly daily or monthly.
- Low Battery Alert: Displays warning for battery replacement, then auto-locks valve (with data backup) if unresolved.
Technical Parameters:
| Diameter | 15mm | 20mm | 25mm |
| Measurement Accuracy | Class 2.0 | Class 2.0 | Class 2.0 |
| Connecting Thread | G3/4B | G1B | G1-1/4B |
| Metrological parameters for different sizes | DN15 | DN20 | DN25 |
| Overload flow rate Q4 | 3.13 | 5 | 7.87 |
| Permanent flow rate Q3 | 2.5 | 4 | 6.3 |
| Transitional flow rate Q2 | 0.04 | 0.064 | 0.1 |
| Minimum flow rate Q1 | 0.025 | 0.04 | 0.063 |
| Ratio ”R” Q3/Q1 | 100 | 100 | 100 |
| Accuracy Class | Class B/Class C | ||
| Display Mode | LCD, Digital, Pointer | ||
| Communication | 433MHz LORA-RF | ||

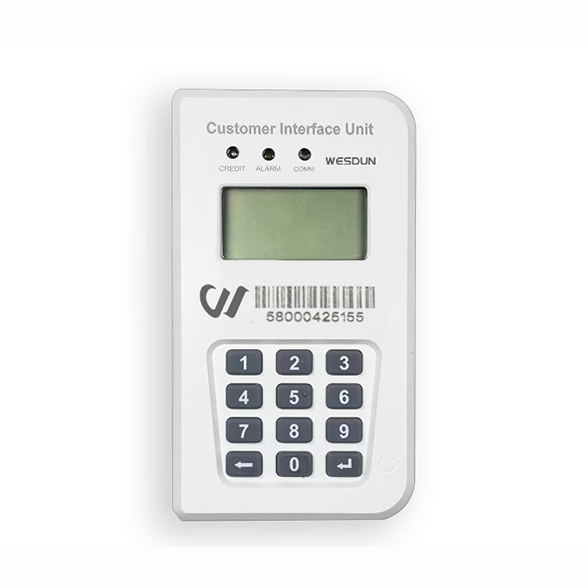

| Communication Distance with CIU/DCU | 350m / 900m | ||
| Maximum Reading | 99999.9m³ | ||
| Maximum pressure loss | < 0.6 Bar/0.06MPa | ||
| Current in Working/Sleeping State | ≤1.1mA / ≤12uA | ||
| Working Temperature | <50℃（cold water meter） | ||
| IP Level | IP68 | ||
| Nominal Working Pressure | 10Bar/1Mpa | ||
| Maximum working pressure | 16Bar/1.6Mpa | ||
| Min. Working Pressure | 0.2Bar/0.02Mpa | ||
| Permissible Error | Q1≤Q≤Q2 5% | ||
| Q2≤Q＜Q4 5% | |||
